| Place of Origin: | China |
|---|---|
| Brand Name: | TOP |
| Certification: | CE ISO9001 |
| Minimum Order Quantity: | 1pc |
| Price: | $4,999.00/pieces >=1 pieces |
| Packaging Details: | wooden box or as customer request |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Showroom Location: | Egypt, United Kingdom, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, Russia, Spain, Thailand, Kenya, Ukraine, Malaysia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Gearbox, Pressure Vessel, Engine, PLC | Material: | Wooden Box |
| Weight: | 25kg | Warranty: | 1 Year |
| Productivity: | 100L/Hour | Weight (KG): | 25 Kg |
| Product Name: | Sieve Bend Screen Filter | Function: | Water Purification Plant |
| Type: | Pre-treatment | Feature: | Eco-friendly |
| Filter Media: | Sand+carbon+resin(all Included) | Other Name: | Pure Water Machine |
| Keywords: | Water Filter System Small Industry | Processing: | Pre-treatment+uf Filter |
| Port: | Guangzhou |
The Inward rotary drum filter is one of the preteatment solid separating devices
used for small and medium wastewater treatment plants, and a device which can remove
solid suspended matter continuously and effectively. In some wastewater treatment, 30%
to 60% of the organic and inorganic solid suspended matters will be removed after filtering
and reducing greatly the subsequent workload.
Simple structure, high reliability |
Compact structure, small covering area |
Wedge wire wrapped drum for excellent hydraulic performance |
| Model (TPO) | 350×600 | 610×610 | 610×1220 | 610×1830 | 800×1830 | ||
| Drum diameter(mm) | 350 | 610 | 610 | 610 | 800 | ||
| Drum length (mm) | 600 | 610 | 1220 | 1830 | 1830 | ||
| Motor power (kw) | 0.25 | 0.55 | 0.75 | 0.75 | 1.1 | ||
| Rotating speed | 4-20r/min | ||||||
| Flowrate (m³/h) | Screen gap(mm) | 0.25 | 8 | 33 | 65 | 100 | 175 |
| 0.5 | 15 | 60 | 120 | 180 | 315 | ||
| 0.75 | 20 | 81 | 162 | 243 | 436 | ||
| 1 | 25 | 100 | 200 | 306 | 535 | ||
| 1.5 | 32 | 130 | 260 | 397 | 695 | ||
| 2.5 | 42 | 170 | 340 | 520 | 912 | ||
*Above parameters only for reference, customized available for detailed requirements
With our consistent effort, our machines are supplied to more than 30 countries during the past 20 years. With high quality, competitive price and good after-service, our products won high praise from customers.
With R&D team, we can design and manufacture the machine according to customer requirements.
Welcome to visit our factory anytime.

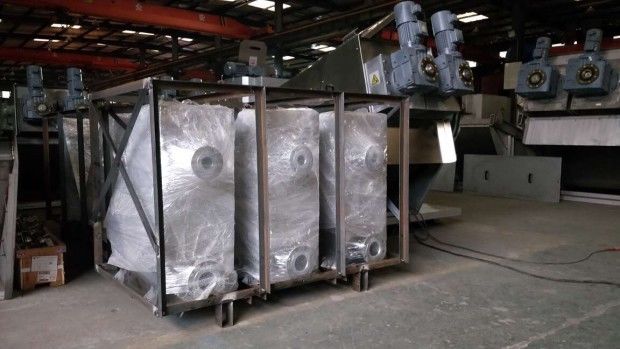

Wooden Package with High Quality
Professional & Safe Transportation
