| Place of Origin: | China |
|---|---|
| Brand Name: | TOP |
| Certification: | CE, ISO9001 |
| Model Number: | TP2400 |
| Minimum Order Quantity: | 1pc |
| Price: | $125,000.00/sets 1-1 sets |
| Packaging Details: | Wooden Box |
| Supply Ability: | 25 Set/Sets per Month |
| Condition: | New | Type: | HOT PRESS |
|---|---|---|---|
| Application: | Woodworking | Pressure: | 700-5400T |
| Voltage: | 380v.50HZ/ 440V. 60HZ | Dimension(L*W*H): | 3550*1370*4200mm |
| Warranty: | One Year | After-sales Service Provided: | Overseas Third-party Support Available |
| Material Size: | 4'*8',4'*9',5'*8',6'*8,6'*9',7'*9',6'*12' | Automation Degree: | Manual, Semi Auto, Auto, Full Auto |
| Packing: | Wooden Box | Weight: | 32T-90T |
| Power: | 20-30kw | Port: | Shanghai |
Short cycle melamine laminating hot press machine production factory/double side hydraulic laminating hot press
Company Advantages For Short cycle melamine laminating hot press machine production factory/double side hydraulic laminating hot press
1.we are one of china famous brand furniture board press machine manufacturers
2.we have been certificied by the famous cercification authority.
3.we have been in door press machine more than 10 years .
4.we make all of our customers be satisfied with the machine and our service.
5.we wil install the machine for you,and train your employees to use the machine well.
6.we will provide one year warranty with free spare parts
7.we have well-trained team which can give you professional advice.
No .1 Brief Introduction For Short cycle melamine laminating hot press machine production factory/double side hydraulic laminating hot press
TP-900T to 1600T Series Best price automatic particle wooden rounter line series of fast veneering hot press machine are widely used in veneering surface decoration patterns of furniture board,common ones are melamine veneering for MDF and particle board.Two operaing mode(manual and automatic) are convenient for customers to choose.Customised can also.
No .2 Particle board production line For Short cycle melamine laminating hot press machine production factory/double side hydraulic laminating hot press
1. Short cycle hot press for door skin
2. Furniture board laminating hot press
3. Melamine MDF/particle furniture board
4. Veneer MDF/particle furniture board
5.Hydraulic part adopts imported hydraulic control system
6.PLC control adopts touch screen operation, make the machine high degree of automatic,high reliability,easy adjustment.

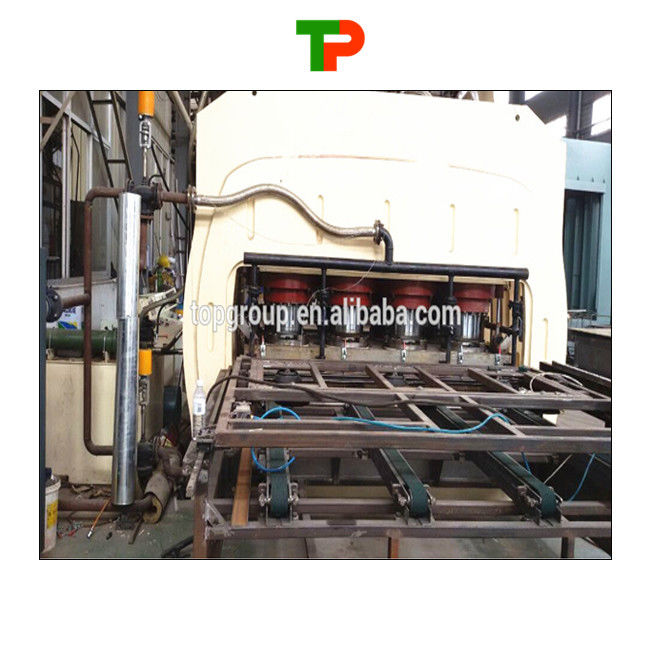

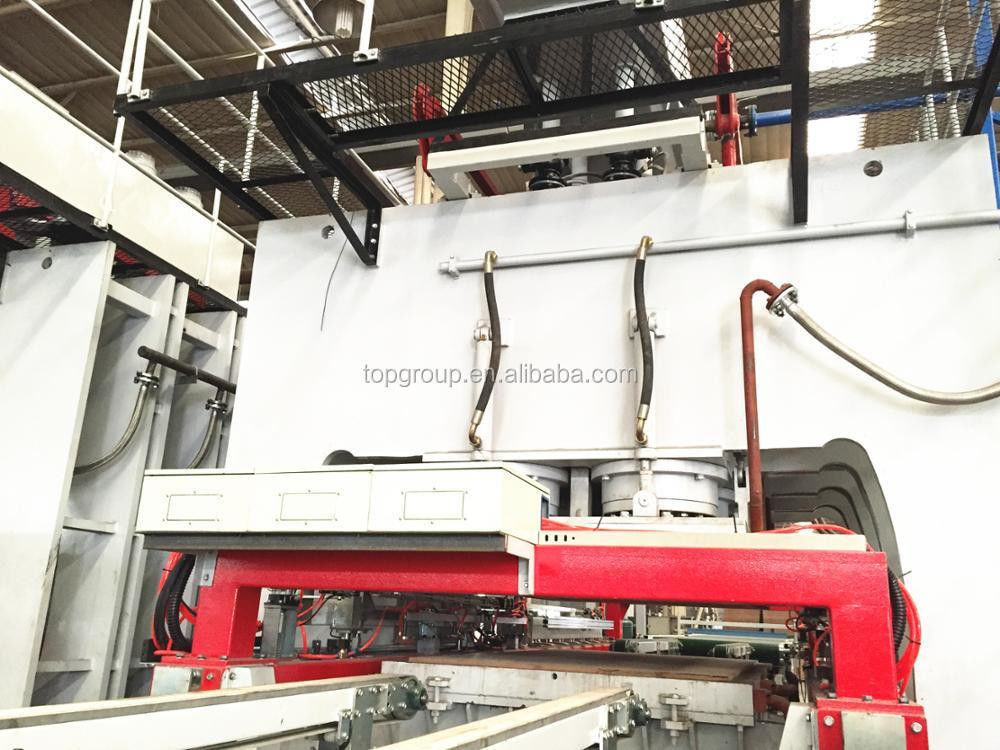

No .3 Machine Picture For Short cycle melamine laminating hot press machine production factory/double side hydraulic laminating hot press
No.4 Specification for Short cycle melamine laminating hot press machine production factory/double side hydraulic laminating hot press
Type | Size(ft) | Nominal Pressure(KN) | The Finished Board Size(mm) | Working Pressure(kg/cm2) | Main oil cylinder(Diameter×Quantity) |
TP-900T | 4×8 | 9000 | 1220×2440 | ≤30 | Φ280×6 |
TP-1200T | 4×8 | 12000 | 1220×2440 | ≤40 | Φ320×6 |
TP-1400T | 4×8 | 14000 | 1220×2440 | ≤47 | Φ340×6 |
5×8 | 1550×2440 | ≤37 | Φ340×6 | ||
6×8 | 1830×2440 | ≤31 | Φ340×6 | ||
TP-1600T | 4×8 | 16000 | 1200×2440 | ≤53 | Φ380×6 |
4×9 | 1200×2750 | ≤47 | Φ380×6 | ||
5×8 | 1500×2440 | ≤42 | Φ380×6 | ||
7×9 | 2100×2750 | ≤27 | Φ380×6 |
