| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | TOP |
| Minimum Order Quantity: | 1pc |
| Price: | $2,499.00/sets >=1 sets |
| Packaging Details: | Standard export packing (or as per your requirement) |
| Supply Ability: | 30 Set/Sets per Month |
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops |
|---|---|---|---|
| Showroom Location: | United States, Viet Nam, Brazil, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Argentina, Chile, Colombia, Bangladesh, Malaysia, Australia | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Gearbox, Bearing, Motor |
| Material: | Film Packing On Pallet, SS304/316 | Weight: | Depends On Capacity |
| Size: | Depends On Capacity | Warranty: | 1 Year |
| Productivity: | 50~1000m3/h | Weight (KG): | 100 Kg |
| Product Name: | Water Treatment Rotary Brush Fine Screen | Application: | Solid Separation |
| Other Name: | Inclined Screen | Construction: | Channel/drain |
| MOQ: | 1 Unit | Operation: | Automatic, 24hrs |
| Micron Rate: | 50mm Above | Control: | Electric Auto Control (PLC Siemens) |
| Cleaning: | By Brush | Port: | Shanghai |

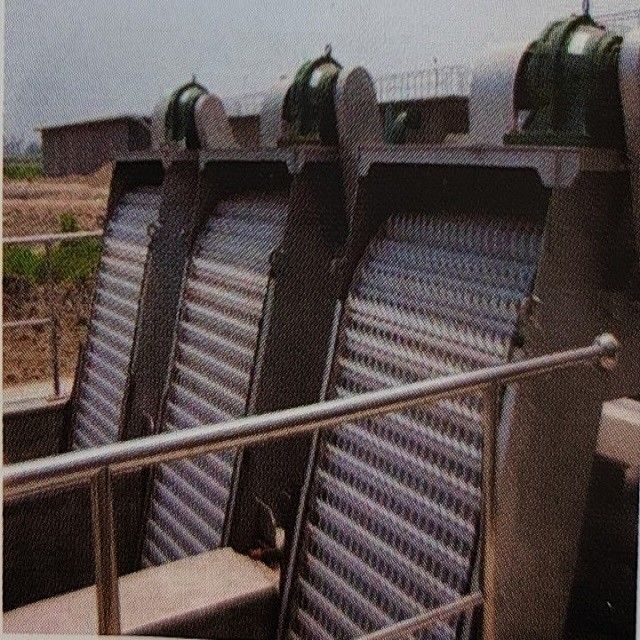

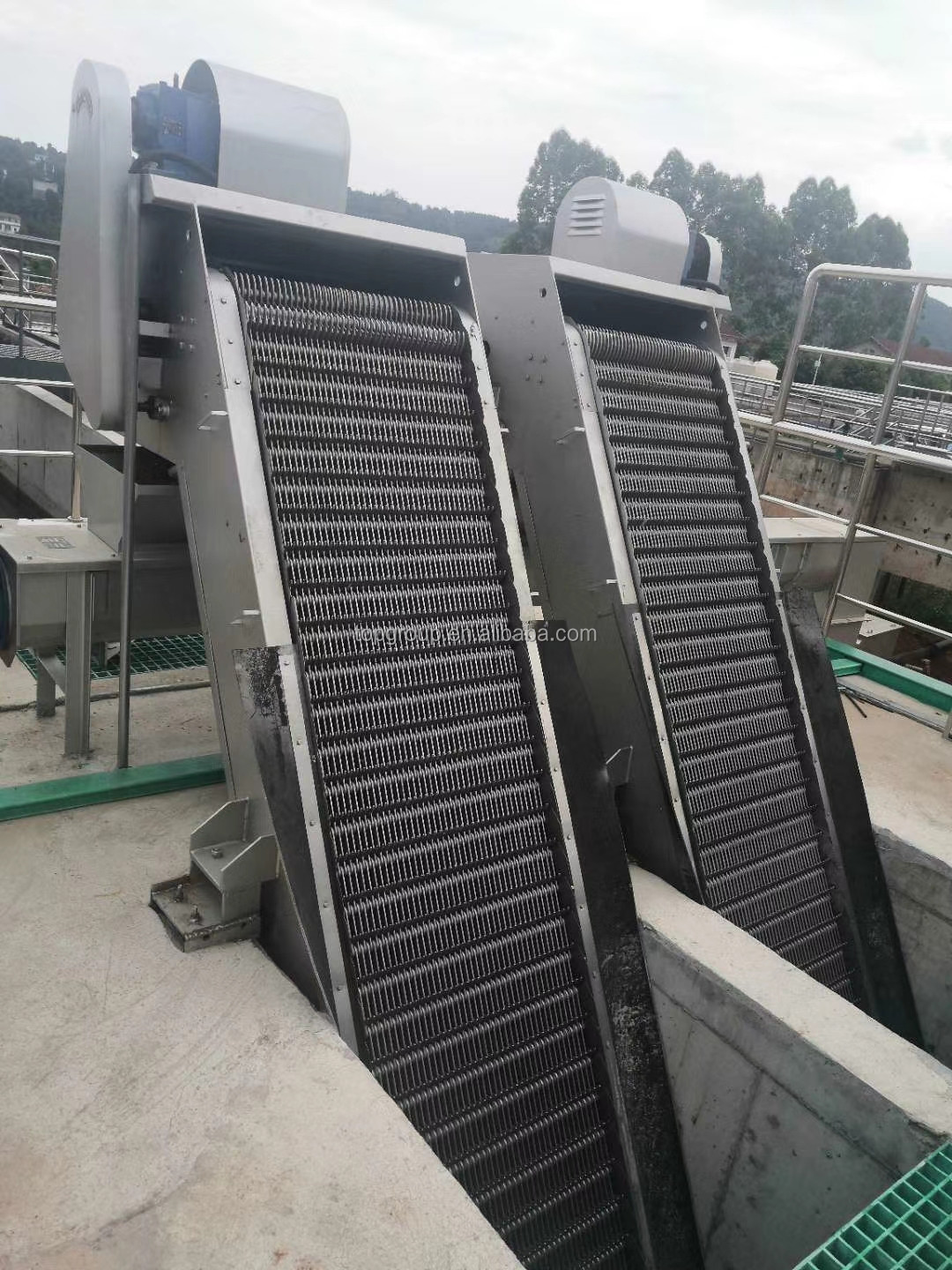

Solid-liqid Separetion Mechanical Bar Screen for WWTP
TPMBS Rotary brush screen filter is a typical fine screen filter cleaning machine, which is suitable for fine filtration in urban sewage, waterworks, power plants, textile, leather, pharmacy, food, paper making and other industries. The device has reasonable structure and can effectively remove fine suspended organisms and impurities in water. The smallest slot size can be 0.02mm.

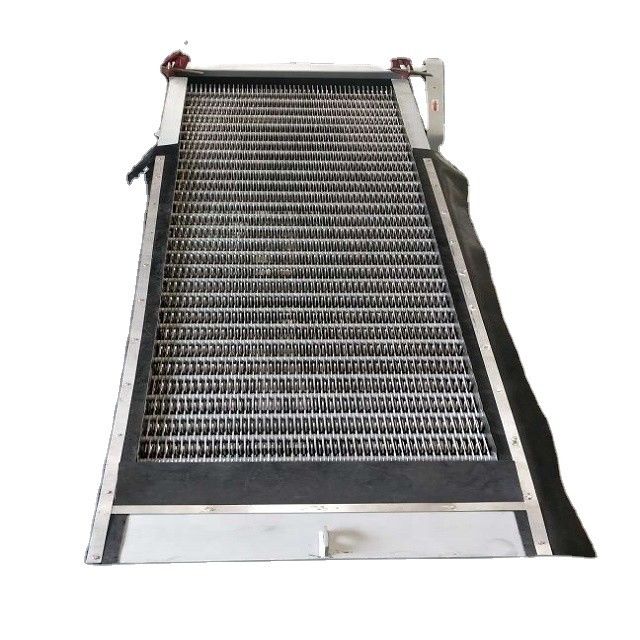

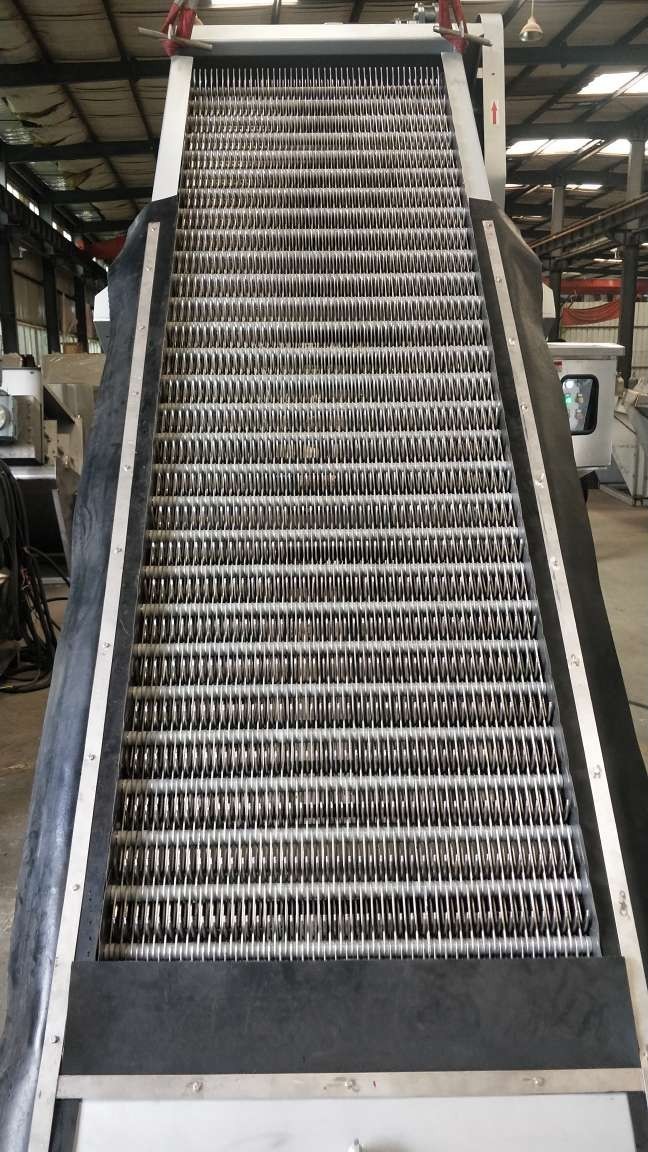

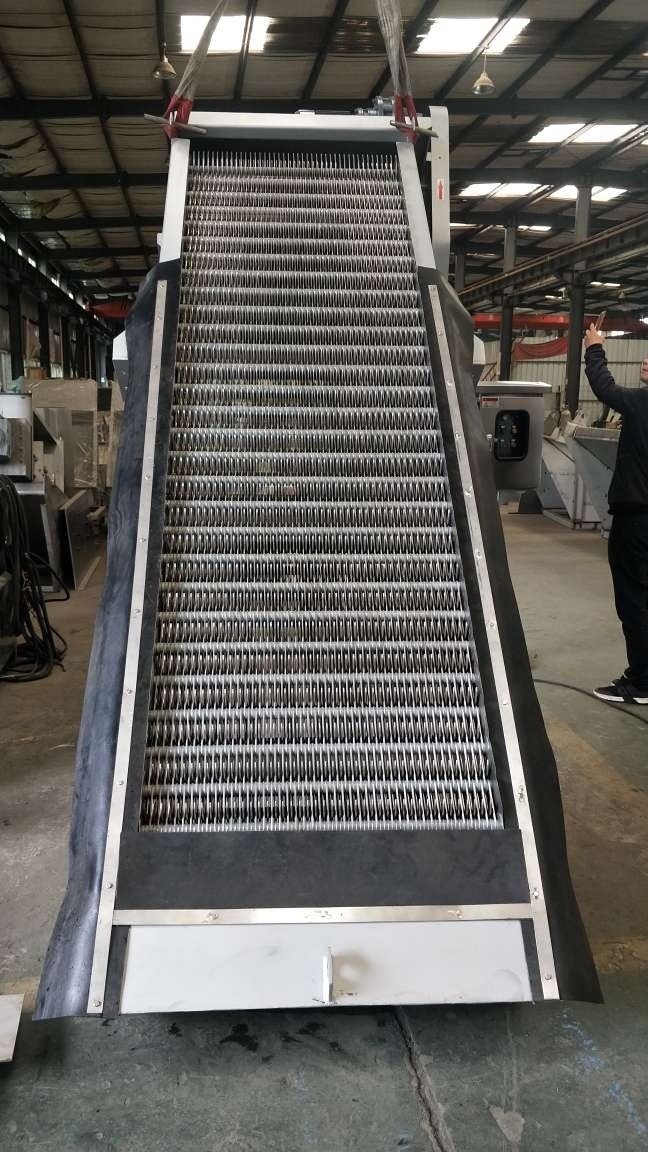

The equipment is mainly composed of frame, main shaft, transmission mechanism, wedge wire screen, slag cleaning brush, traction chain, etc.
Driven by motor, the chain wheel and the chain move under the deceleration of reducer, and the slag cleaning brush fixed on the chain sweeps the dirt on the surface of the filter screen from the bottom to top by the traction of the chain, and then unloads the slag through discharge opening, small amount of dirt attached to the brush is removed by the screw, that’s a complete running process. The dirt in the water is intercepted when the liquid passes through the screen, and the liquid flows through the slots of the screen and the entire running process continuously circulate.
1. This equipment has the characteristics of reliable filtration, high separation efficiency, smooth water flow, stable operation, low noise, low energy consumption, small space occupation, long service life, convenient installation and maintenance, and full automatic
2. Interception of SS efficiency up to 100%, no leakage
3. Simple structure, compact and easy to maintain
4. Top quality V-SLOT wedge wire filter, high precision, extremely smooth surface, easy to scrape, high strength, long life, easy to replace
5.V-SLOT wedge filter has a high slot opening rate
6. Plate brush easy to clean
| No. | Item | UN | Design Parameter |
| 1 | Width | mm | Customizable |
| 2 | Water level difference | m | 2 |
| 3 | Installation angle |
| 80°(standard), 45°, 75°, 90°(non-standard) |
| 4 | Slot size | mm | ≥0.02 |
| 5 | Rotary brush speed | r/min | ~10rpm |
Parameters and images are for reference only and the company reserves the right to continuous improvement.
For orders, please specify: slot size, flow rate, material, control type (time control / level control), installation angle.
