| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | TOP |
| Minimum Order Quantity: | 1pc |
| Price: | $9,999.00/sets |
| Packaging Details: | Standard package<br>Rotary Drum Filter |
| Supply Ability: | 30 Set/Sets per Month Rotary Drum Filter for Irrigation |
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops |
|---|---|---|---|
| Showroom Location: | Indonesia, Russia, Thailand | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | Gearbox, Motor |
| Power: | 0.55 | Warranty: | 1 Year |
| Productivity: | 99% Removal Rate | Function: | Solid-liquid Separation |
| Application: | Textile And Dyeing, Tannery, Slaughter House, Municipal, Paper Mill | Type: | Fine Filter |
| Material: | SS304/316 | Treatment Capacity: | 8-912 T/h |
| Filter Precision: | 250-2500 Um | Noise: | Very Low |
| Control: | PLC(SIEMENS)/Customized | Motor Brand: | SEW, Nord, Guomao, Etc. |
| Voltage: | 380V /Customized | After Warranty Service: | Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Canada, Indonesia, India, Russia, Thailand, South Africa | After-sales Service Provided: | Video Technical Support, Online Support |
| Port: | Shanghai/Shenzhen/Tianjin |

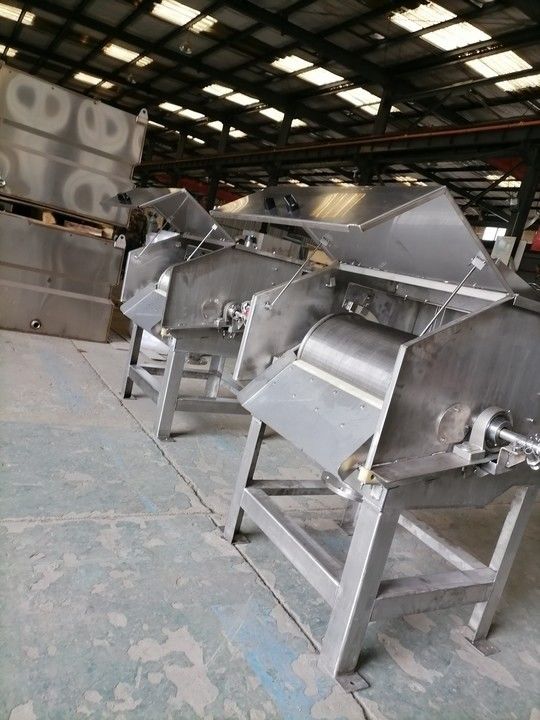

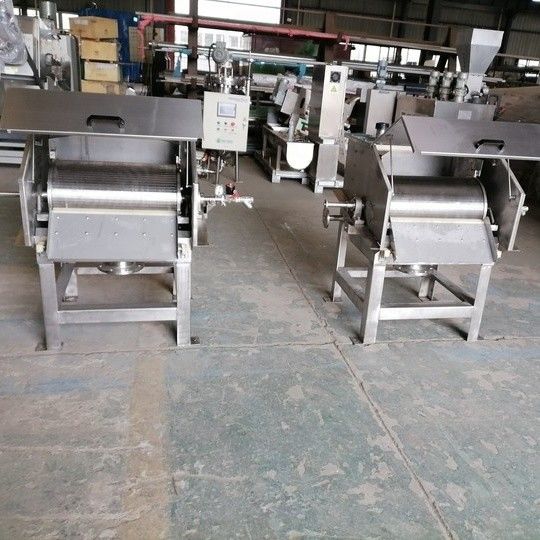

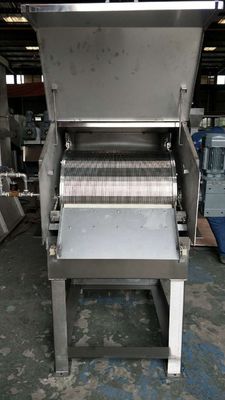

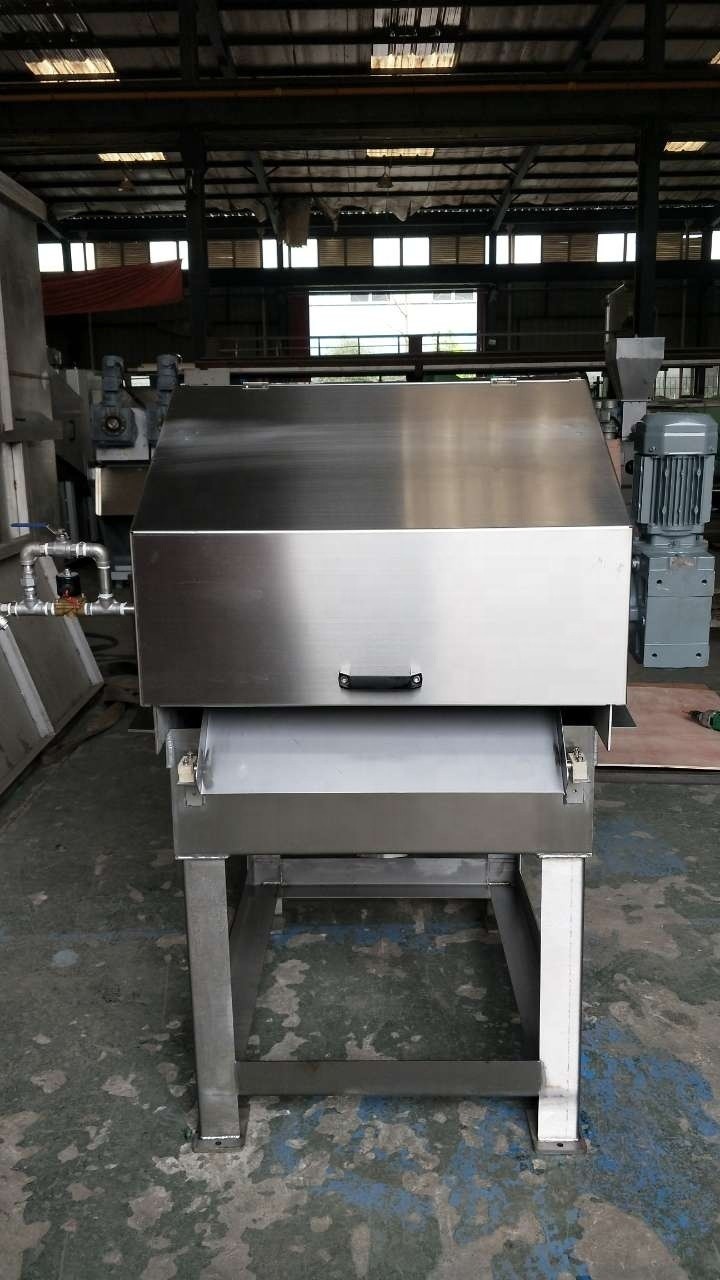

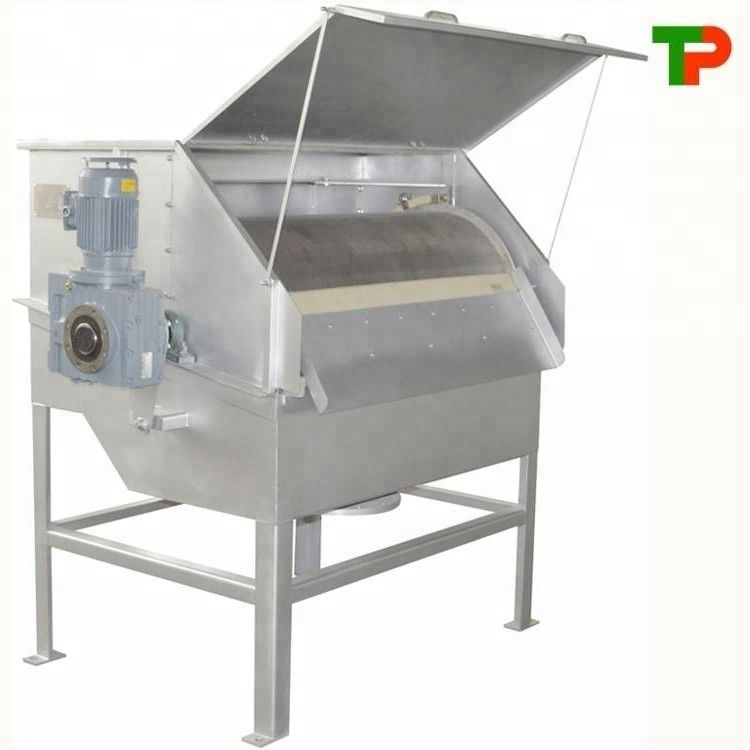

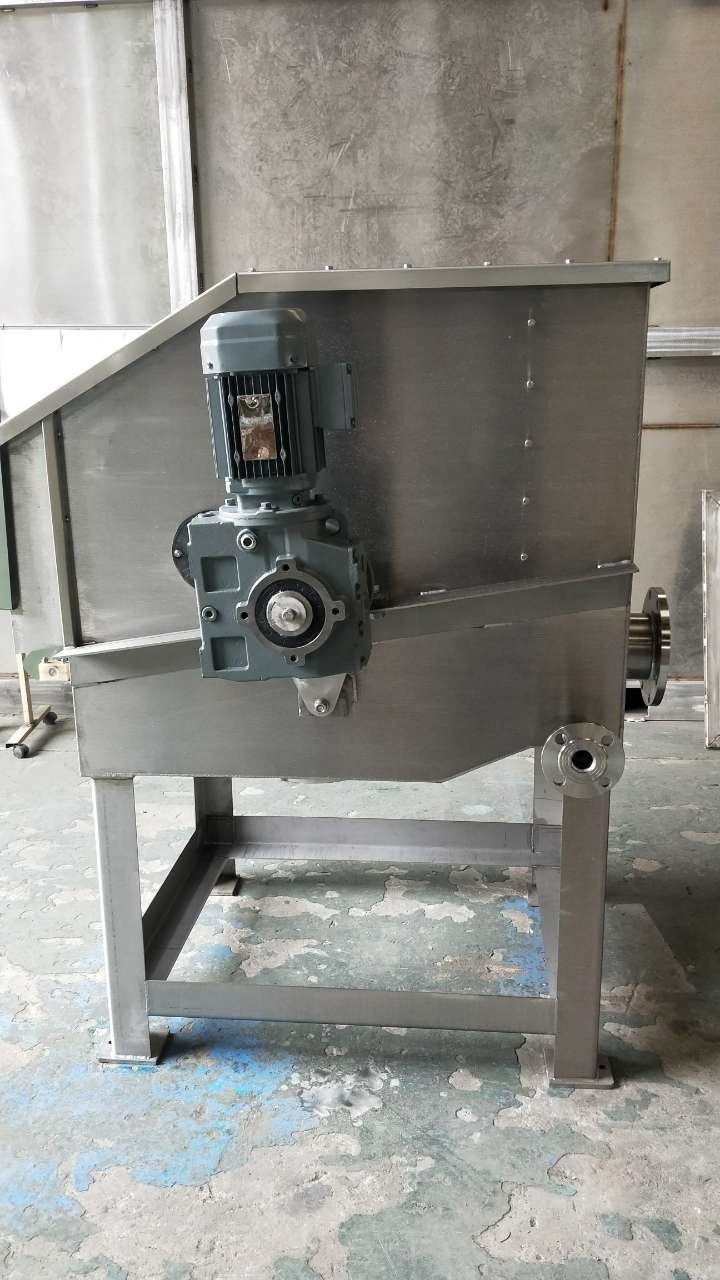

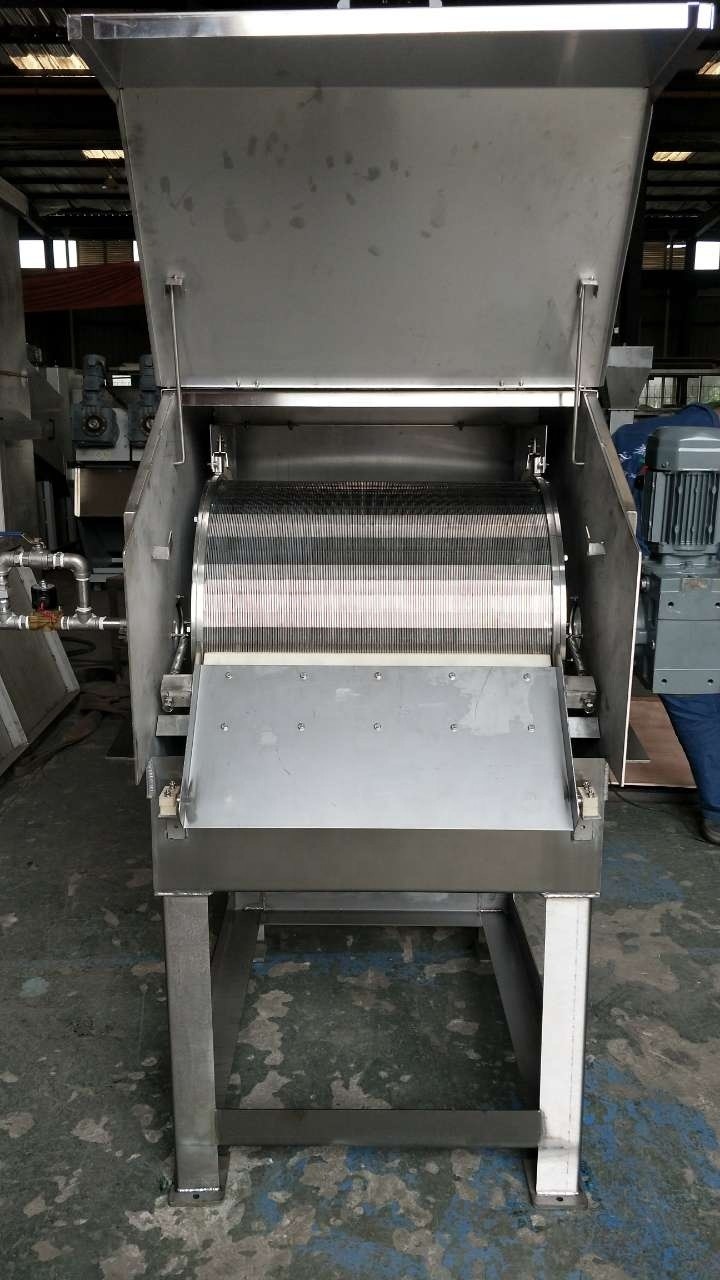

Rotary Drum Filter
TPO Sewage Treatment inward Drum Filter is one of the pretreatment solid separating devices used for small and medium wastewater treatment plants, and a device which can remove solid suspended matter continuously and effectively. In some wastewater treatment, 30% to 60% of the organic and inorganic solid suspended matters will be removed after filtered, which will reduce the subsequent workload greatly.
Ac speed regulating motor through a speed reducer drive reseau cylinder, sewage through the inlet valve into the tank, go by a buffer uniform box clapboard rise to filter the water. Water purification through reseau gap into the bottom of the barrel to the discharging, at the same time cleaning the reseau. Greater than reseau clearance impurities and fiber type of organic matter, by reseau,is blocked by reseau and another side is reseau of rotating cylinder. Through the unloader discharging Slag hopper, after processing the litter moisture content is lower than the original water equipment 30% ~ 50%. By filtering sewage flow out of the water tank and is discharged through drain.
1. The equipment are all made of stainless steel, corrosion resistance, compact structure, cover an area of an area small, easy installation .Can use direct expansion bolt, this equipment can not do groove. Inlet and outlet tubes are available.
2.The gate is inverted trapezoidal section, making the slag is not easy to jams mesh filters.
3.Controlled by control motor, according to the water flow can be to maintain the best working condition.
4.Special flusher device can brush away small amount of impurity on the surface of the paste on reseau, net tube after secondary rinse, can achieve the best effect of qing gate, at the same time set up a flusher, will be attached to mesh the dirt to wash.
Plastic film or wooden boxes package or as per customers' requirements.
Top Machinery is located in Chengdu, being with convenient traffic, developed communication, vast territory and a good space for development. Top’s a professional manufacturer and exporter of all kind of filters and its elements. Our products have exported to over 30 countries with very good feedback. The products mainly including automatic washing filter, backwashing filter, drum filter, ion exchanger, and elements like Johnson screen mesh , V shaped wire welded screen pipe, sieve plate, screen basket, sieve bend, vibrating screen, water nozzle, hub and header laterals, resin trap, etc.
Our idea is "customer is the first". It means "saving money for you, providing high-quality products for you, five star service for you". We sincerely hope to establish cooperation with you. We sincerely welcome all clients to contact us for details.
