| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | TOP |
| Certification: | ISO9001:2008 |
| Minimum Order Quantity: | 1pc |
| Price: | $5,999.00/sets 1-4 sets |
| Packaging Details: | Plastic streching film or wooden-cases package Multi-Plate Screw Press Sludge Dewatering Screw Press Machine |
| Supply Ability: | 30 Set/Sets per Month |
| Condition: | New | Applicable Industries: | Hotels, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Printing Shops, Energy & Mining, Food & Beverage Shops |
|---|---|---|---|
| Showroom Location: | Pakistan, India, Bangladesh | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Scrapper |
| Material: | Steel, Stainless Steel 304/316 | Weight: | 1340KG |
| Size: | 7.7CBM | Power: | 0.75KW |
| Warranty: | 1 Year | Productivity: | 10000L/Hour |
| Weight (KG): | 1340 Kg | Use: | Water Treatment |
| Type: | Straight | Function: | Solid-liquid Separation |
| Application: | Leather/Municipal Water And Industrial Waste Treatment | Motor Brand: | SEW, Nord, Guomao, Etc. |
| Keywords: | Sludge Scrapper | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| After Warranty Service: | Field Maintenance And Repair Service | Port: | Shanghai |

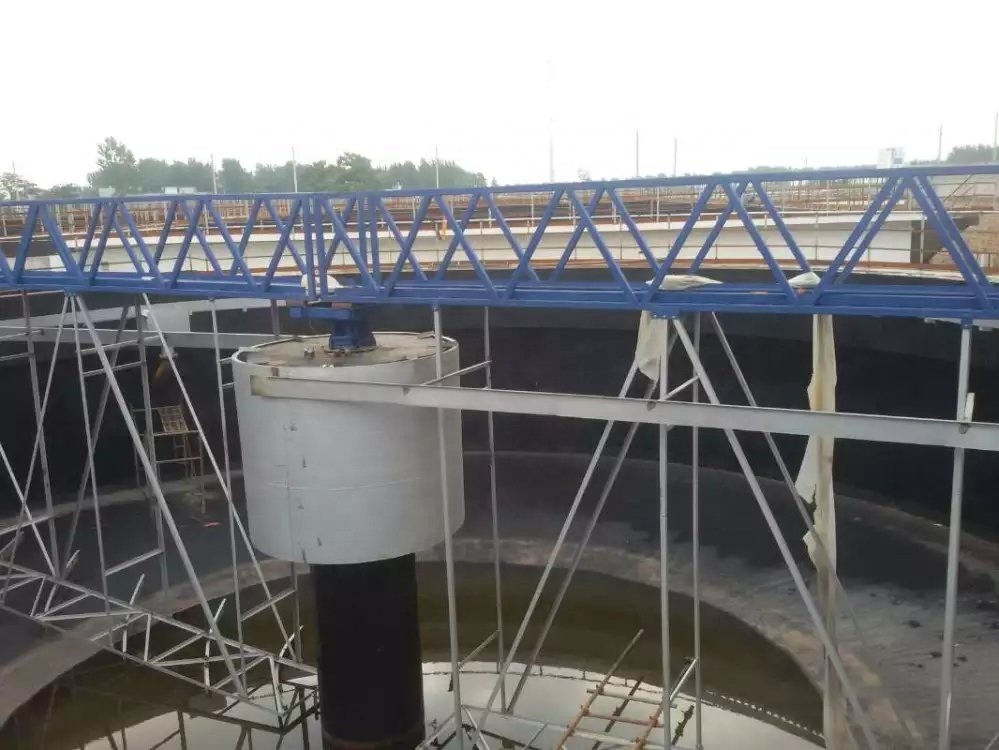

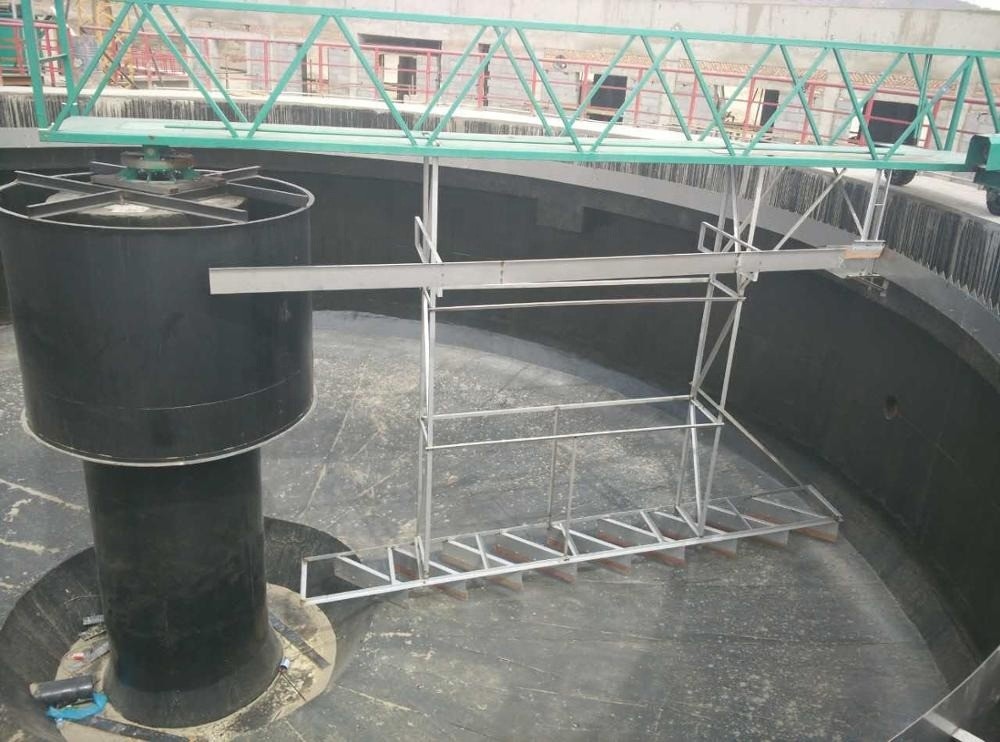

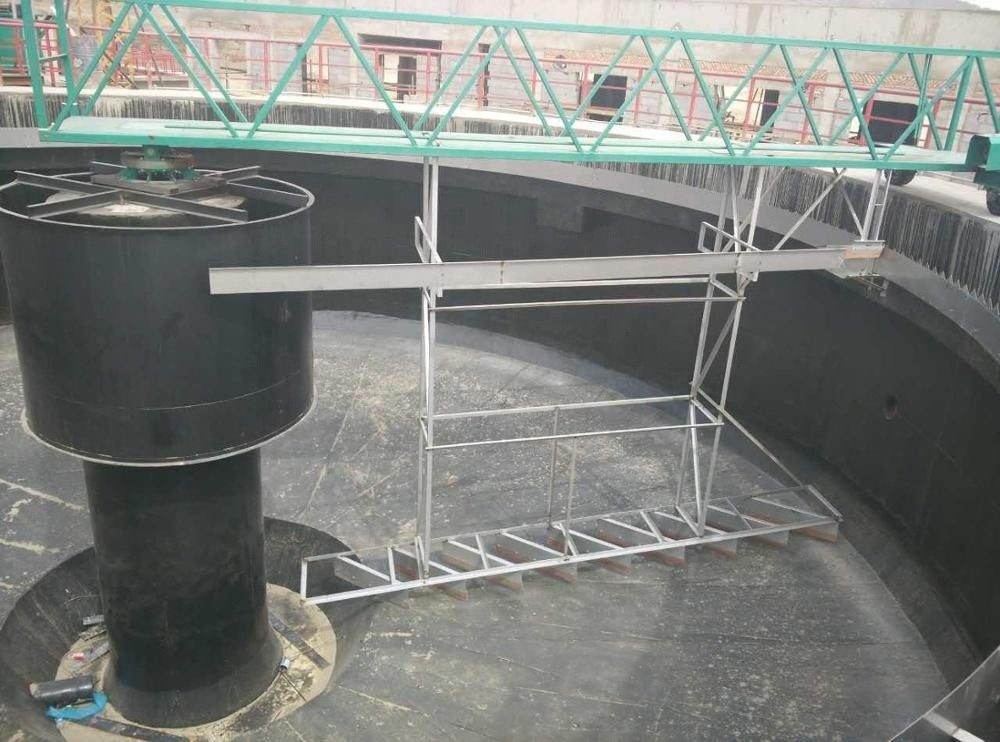

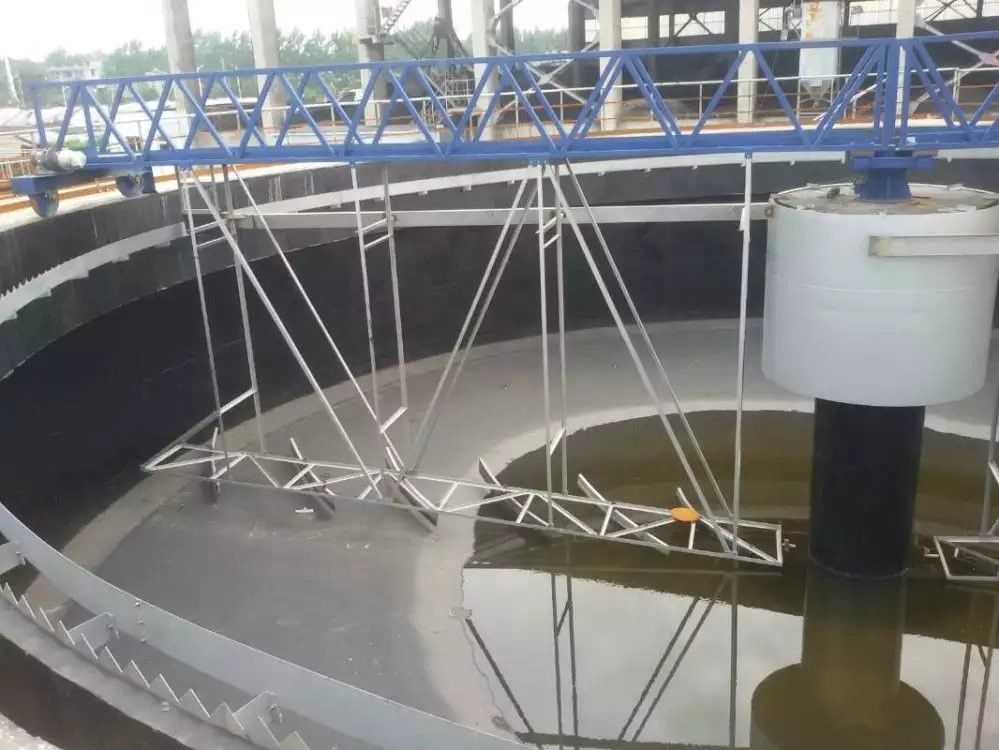

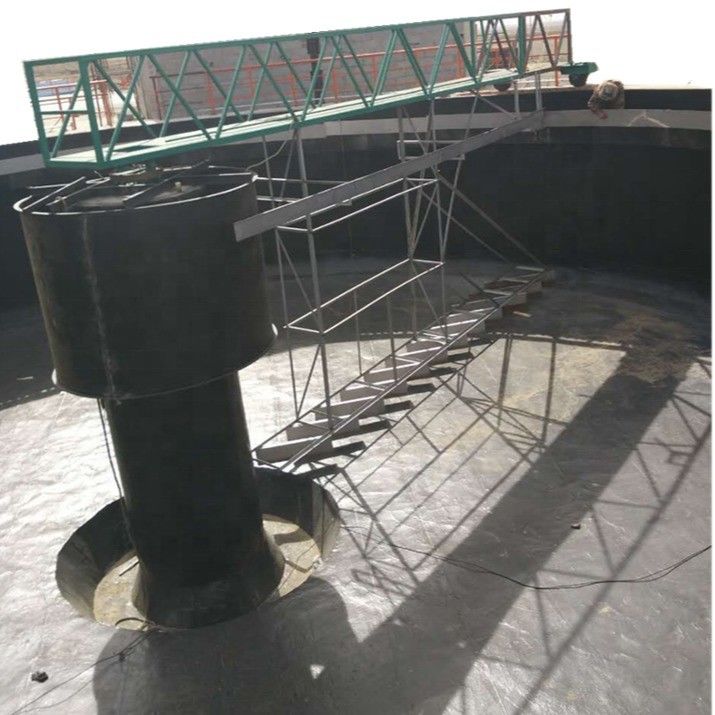

Mechanical sludge scrapper for circular clarifier in water treatment plant
Product introductions
TPZXG Centre Driven Clarifier Scrapper, the load of the whole scrapper acts on the center of the working bridge. The scrapper is driven by the central driving mechanism. The directional scrapper scrapes the sludge from the bottom of the sedimentation tank into the central sludge collecting tank and discharges it from the sludge tank by hydrostatic pressure.
Usage
•Municipal & Domestic
•Tannery•Paper & Pulp•Dyeing & Printing
•Food & Beverage•Dairy•Agricultural•Slaughter & Farming
•Pharmaceutical & Petrochemical
Advantages
1. Simple structure, easy operation and high mud scraping efficiency
2. Sludge scraping at the bottom of the pond is driven by a deceleration drive mechanism with compact structure with high mechanical efficiency.
3. The oblique scrapper has good continuity and high efficiency of collecting mud. The rubber scrapper is installed under the stainless steel scrapper to ensure that the scraping mud is thoroughly clean and there will be no floating mud.
4. Electrical and mechanical overload protection is adopted in the transmission part, which makes the operation safer and more reliable.
5. The underwater part is made of stainless steel with long corrosion resistance and service life.
6. Lifting device can be selected, which can be divided into manual and electric.
Electronic control
Electrical component Brand: Schneider
Process flowchart
Technical parameters
Technical design and service
Provide complete sets of WWTP technology, upgrade proposals, based on customer conditions and needs
Packaging & Shipping
Q: Where is your factory?
A:Chengdu city,Sichuan province, China
Q:Can you accept OEM?
A:Yes.We could do OEM for you.
Q: Do you have a certification?
A: Yes. we have ISO certificate and certificate of patent
Q: How about the delivery tme?
A: Usually 15-30 days after prepayment is confirmed.
Q:Do you have a design team?
A:Yes,we have.Providing outline drawing,electric drawing and others.
Q. :What is your payment?
A: T/T,T/C,Western Union,Paypal.
