| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | TOP |
| Minimum Order Quantity: | 1pc |
| Price: | $3,999.00/pieces |
| Packaging Details: | WOODEN BOS OR AS CUSTUMER REQUESTED |
| Condition: | New | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Printing Shops, Energy & Mining, Other |
|---|---|---|---|
| Showroom Location: | Egypt, Indonesia | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | More Than 5 Years | Core Components: | Gear, Engine, Motor |
| Material: | Wooden Package, SS304 | Weight: | Depends On Capacity |
| Size: | Depends On Capacity | Warranty: | 1 Year, 1 Year |
| Productivity: | 500L/Hour | Weight (KG): | 300 Kg |
| Product Name: | TPIE Sodium Lon Exchanger Water Softener | Function: | Industry Water Softening |
| Application: | Chemical, Electronics, Textile | Type: | Pure Water Treatment System |
| Model: | TPIE | Feature: | High Strength |
| Capacity: | 2T/H-16T/H | Package: | Woven Bag Packing |
•Municipal & Domestic
•Tannery•Paper & Pulp•Dyeing & Printing
•Food & Beverage•Dairy•Agricultural•Slaughter & Farming
•Pharmaceutical & Petrochemical

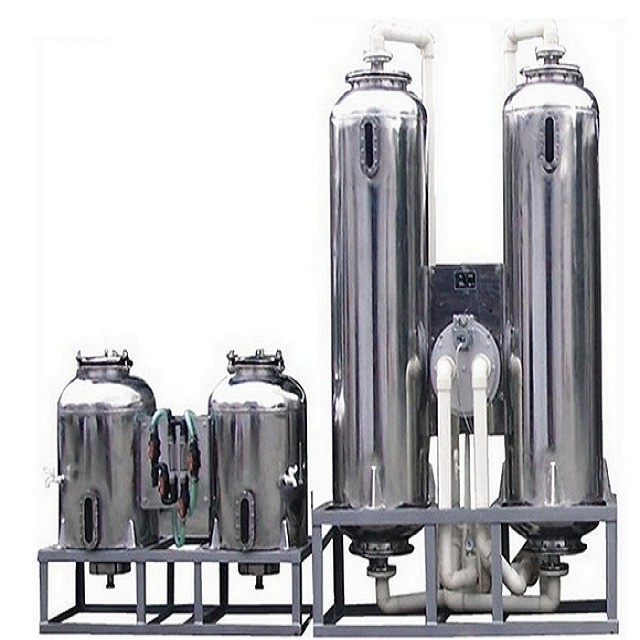

water softener/Sodium ion exchanger
Product Introduction
TPI sodium ion exchanger is using strong acidic resin can absorb the calcium in the water,the characteristics of magnesium ions to soften water quality, Using salt aqueous solution can make its regenerative recovery principle designed
TPI series Ion Exchanger is mainly applicable to boilers, thermal power plants, chemical, textile, pharmaceutical, biological, electronics, and atomic energy industry, pure water pre-treatment, industrial water softening, and deionized water preparation, as well as decolorization and purification of foods and drugs, recycling of precious metals and chemical raw materials, and electroplating wastewater treatment, etc.
Main Features

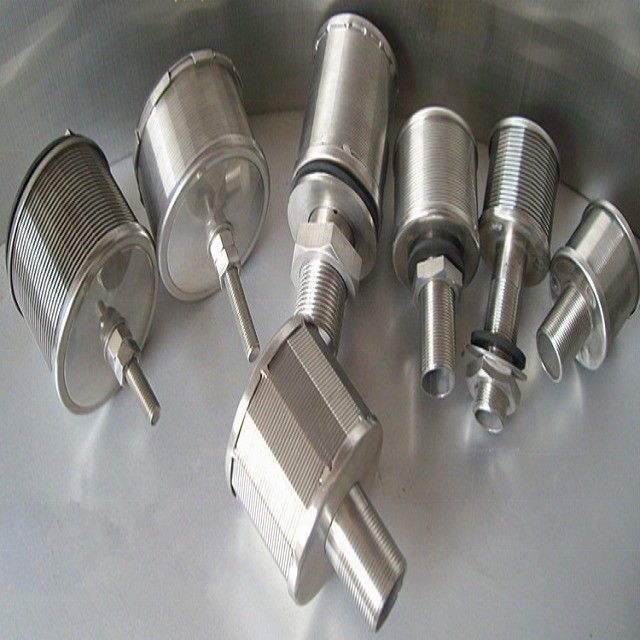

1.Water nozzle use top quality of V - SLOT screen, precisive gap, smooth surface, easy to wash, not easy clog, high intensity, long service life
2.Automatic control: PLC control, which can realize single or dual mode control time and flow regeneration time, except add salt, circulation process fully automated.
3.Variety of forms: single tank valve intermittent water production; double tank single valve, one use one standby, continuous water production; also multiple tanks and valves combined to achieve discontinuous or continuous water production, to meet the needs of different process water requirement
Specifications
| Model No. | Capacity | Nominal Recovery | Nominal Salt Rejection | Working Pressure | Operating Temperature | Voltage | Weight(kg) | Size(mm*mm) |
| TPI-2 | 2T/H | 65-75% | 99.60% | 0.4mpa | 5-50ºC (Design Temperature 25ºC) | 220V/380V/460V, 50-60Hz | 300 | Φ400×1850 |
| TPI-4 | 4T/H | 450 | Φ500×1850 | |||||
| TPI-6 | 6T/H | 480 | Φ600×1850 | |||||
| TPI-8 | 8T/H | 580 | Φ600×2300 | |||||
| TPI-10 | 10T/H | 600 | Φ800×1850 | |||||
| TPI-12 | 12T/H | 620 | Φ800×2300 | |||||
| TPI-14 | 14T/H | 750 | Φ1000×2100 | |||||
| TPI-16 | 16T/H | 800 | Φ1200×2300 |
*Above parameters only for reference, customized available for detailed requirements
About us
Top machinery, founded in 2002, specialized manufacture wastewater treatment equipment and sludge dewatering machine, like screw type sludge dewatering machine, decanter centrifuge, brushing/scraping self-cleaning filter, automatic back-flushing filter, Bernoulli filter, electrocoagulation, inward/outward water micro filter, bar screen, etc. With our consistent effort, high quality, competitive price and good after-service, our machines are supplied to more than 30 countries with very good feedback.
Customer Visitations and Exhibitions
With our consistent effort,Our machinery is supplied to more than 30 countries including the Russia,Pakistan,India,Argentina,Indonesia,Romania,Canada,Turkey,Vietnam and other countries. Also participate in the exhibitions of urban sewage treatment, wastewater treatment,textile, leather, chemical and other industries.
