| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | TP |
| Model Number: | TPAD |
| Minimum Order Quantity: | 1pc |
| Price: | $5,000.00/sets 1-1 sets |
| Packaging Details: | Wooden or Simple tray |
| Supply Ability: | 100 Set/Sets per Month |
| Product Name: | Sewage Treatment | Type: | Automatic |
|---|---|---|---|
| Material: | Stainless Steel | Capacity: | 1000L |
| Voltage: | 220V / 380V | Power: | 1.5KW |
| Warranty: | 12 Months | Usage: | Solid-liquid Separation |
| Function: | Flocculation | Port: | Shanghai |

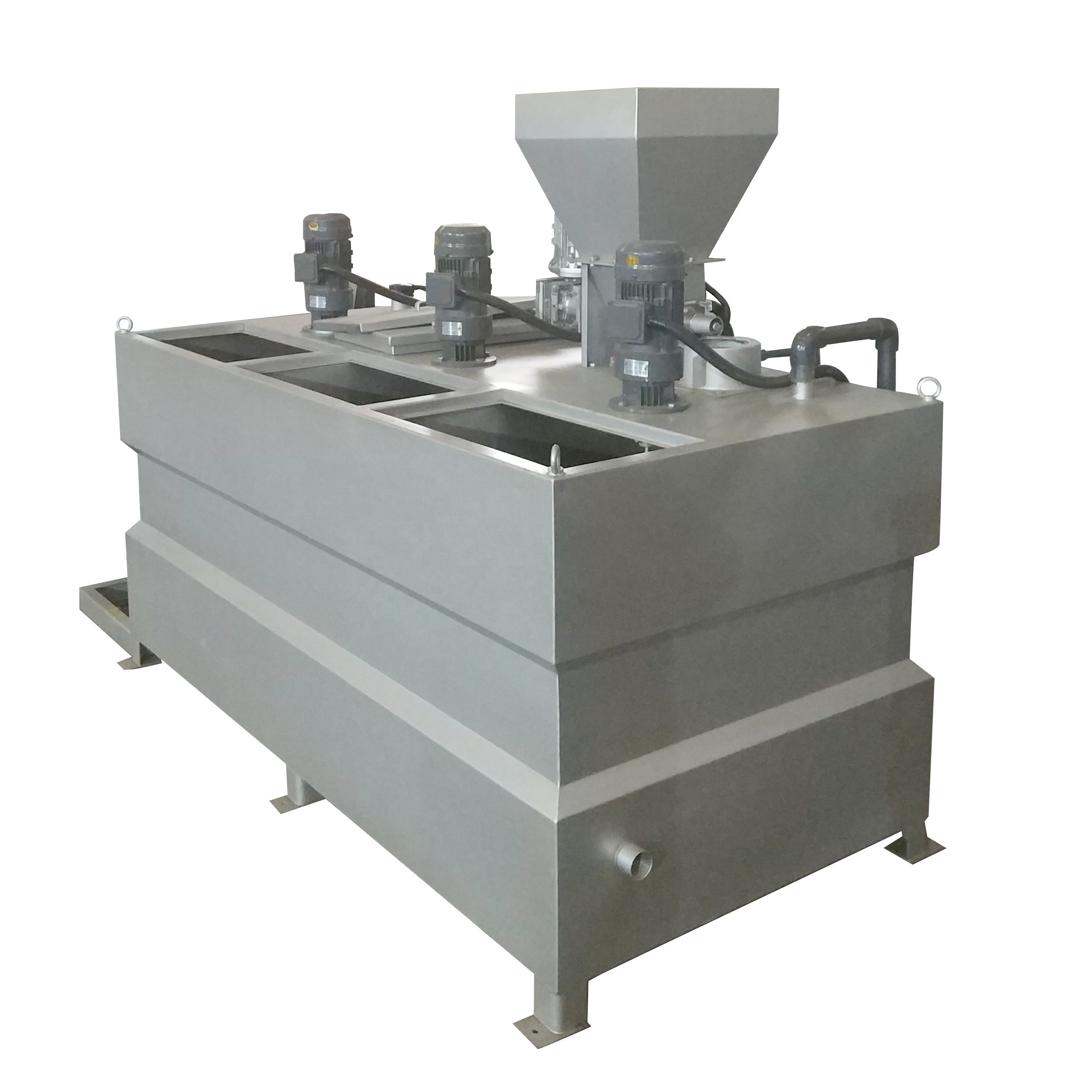

TPAD Polymer Flocculant Auto-Dosing Equipment for Sludge Dewatering System
Product Introduction
Triple cavity dosing device is consist of triple cavity case, dry powder addition system, liquid mixing system, control system, liquid injection system. This device is flocculating agent automatic continuous preparation and addition system. Dry powder flocculating agent from spiral propeller to instant device premix with clean water, the wet agentia goes into mixing tank for mixing and diluting,prepare it with the concentration requirement; if it is a liquid flocculant, it is directly injected into the preparation tank by the screw pump. If it is a liquid flocculant agent, it is directly injected into the preparation tank by the screw pump. In the preparation process,The water inflow must be relatively stable under the observation of the flowmeter, to ensure that the concentration is no change in whole working process.
Main features
1.Automatic batching, dissolving, with one integration design, fully automatic running.
2.Quantitative medicine dispensing device measured accurately,with stepless transmission drive,It is convenient to adjust the feeding amount,The concentration range of the dispensing medicine is large.
3.With the functions of liquid level detection, flow control, auxiliary vibration feeding and so on,high level automation.
Specification
Wooden or simple tray Package with high quality to protect your machine.
