| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | TOP |
| Minimum Order Quantity: | 1pc |
| Price: | $2,000.00/sets |
| Packaging Details: | Standard package<br>Novel design screw press sludge dewatering machine for sludge dewatering |
| Supply Ability: | 30 Set/Sets per Month Screw Filter Press Sludge Dewatering Machine |
| Condition: | New | Applicable Industries: | Hotels, Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company |
|---|---|---|---|
| Showroom Location: | Indonesia, Pakistan, India, Argentina, Bangladesh, Malaysia | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | Gearbox, Motor, PLC |
| Material: | Wooden Box, Stainless Steel | Weight: | 1000kg |
| Size: | 1000mm*1500mm*1200mm | Power: | 2.5kw |
| Warranty: | 1 Year | Productivity: | 5000L/Hour |
| Application: | Leather/Municipal Water And Industrial Water | Type: | Water Filter Parts |
| Color: | Grey | Function: | Solid-liquid Separation |
| Inlet Water Content: | 95%-99.8% | Outlet Moisture: | 75%-80% |
| Certificate: | ISO9001:2008 | Motor Brand: | SEW, Nord, Guomao, Etc. |
| Control: | PLC(SIEMENS) | After Warranty Service: | Video Technical Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Philippines, Indonesia, Pakistan, India, Russia, Malaysia, Argentina, Chile, Bangladesh | After-sales Service Provided: | Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support |
| Port: | Shanghai/Shenzhen/Tianjin |

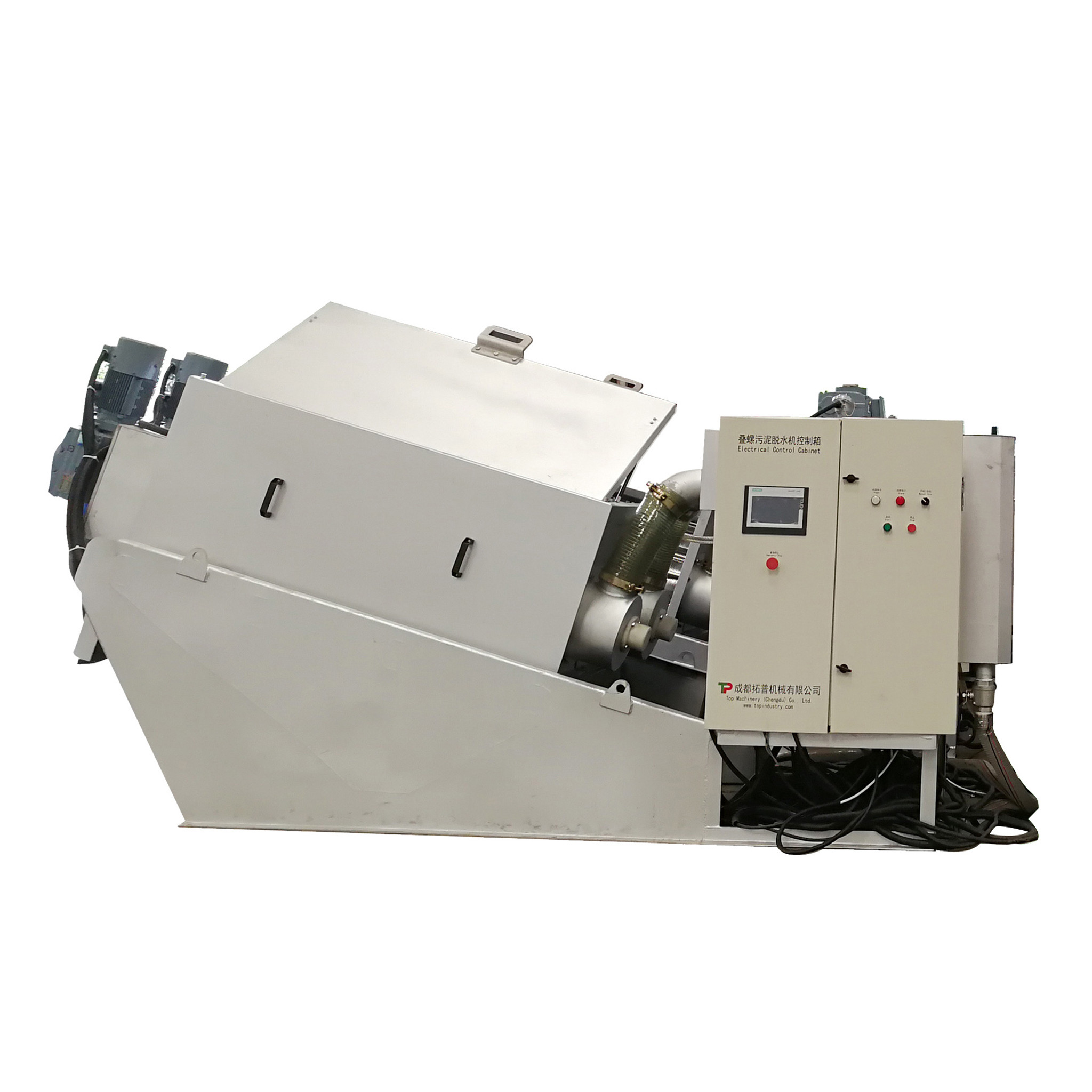

TPDL volute screw sludge dewatering machine is a new technology of Sludge Dewatering Machine(Hereinafter referred as TPDL) which belongs to the screw press, can replace the traditional filter press like belt press and frame press. It's clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of sewage plant construction.
Usage
•Municipal & Domestic
•Tannery•Paper & Pulp•Dyeing & Printing
•Food & Beverage•Dairy•Agricultural•Slaughter & Farming
•Pharmaceutical & Petrochemical
Multi-plate Screw Filter Press for Industrial Wastewater
Working principle
The wastewater is pushed into the dewatering machine.The sludge will move to the sludge cake outlet under the pressure of the helical aixs blades. Becuse the gap among the helical blades become narrower,so the sludge bear heavier pressure and began to dewatering under the pressure. The water comes out from the space between fixed and moving plates.
Multi-plate Screw Filter Press for Industrial Wastewater
Advantages
1. Low operation cost: below 40% of belt press and 20% of centrifuge.
2. Power-saving: less than 5% of centrifuge
3. Water-saving: less than 0.1% of belt filter press.
4. Saving drugs: saving around 60%.
5. Compact: saving more than 60% of the investment for dehydration room.
6. Non-clogging: processing the fats & oils and fiber sludge perfectly.
Multi-plate Screw Filter Press for Industrial Wastewater
Screw press spare part
Multi-plate Screw Filter Press for Industrial Wastewater
Process flow chart
Multi-plate Screw Filter Press for Industrial Wastewater
Multi-plate Screw Filter Press for Industrial Wastewater
Multi-plate Screw Filter Press for Industrial Wastewater
Wooden pallet or standard export wooden box as per customers' requirement.
Multi-plate Screw Filter Press for Industrial Wastewater
Multi-plate Screw Filter Press for Industrial Wastewater
Auto Dosing Device
Top machinery, founded in 2002, specialized manufacture wastewater treatment equipment and sludge dewatering machine, like screw type sludge dewatering machine, decanter centrifuge, brushing/scraping self-cleaning filter, automatic back-flushing filter, Bernoulli filter, electrocoagulation, inward/outward water micro filter, bar screen, etc. With our consistent effort, high quality, competitive price and good after-service, our machines are supplied to more than 30 countries with very good feedback.
