| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | TOP |
| Minimum Order Quantity: | 1pc |
| Price: | $2,550.00/sets >=1 sets |
| Packaging Details: | Standard export packing with wooden case.(or as per your requirement) |
| Supply Ability: | 50 Set/Sets per Month |
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops |
|---|---|---|---|
| Showroom Location: | Viet Nam, Indonesia, Russia, Thailand, Argentina, Bangladesh | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Gearbox, Motor |
| Material: | Film Packaged On Pallet, SS304/316 | Weight: | Depends On Capacity |
| Size: | Depends On Capacity | Warranty: | 1 Year |
| Productivity: | 50~500m3/h | Weight (KG): | 10000 Kg |
| Product Name: | Wedge Wire Drum Screen | Application: | Solid Separation |
| Keywords: | Drum Screen | MOQ: | 1 Unit |
| Operation: | Automatic, 24hrs | Micron Rate: | 50 Micron Above |

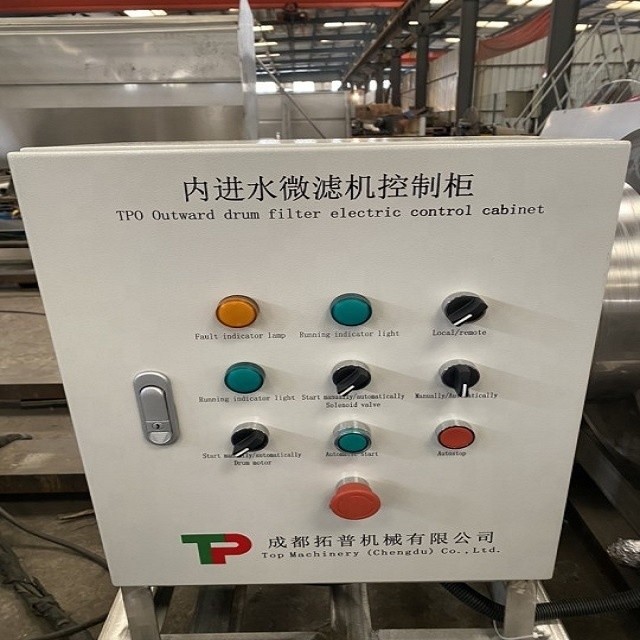

| Control: | Electric Auto Control (PLC Siemens) | Package: | Wrapped+Pallet |
| After-sales Service Provided: | Field Installation, Commissioning And Training | Port: | Shanghai |

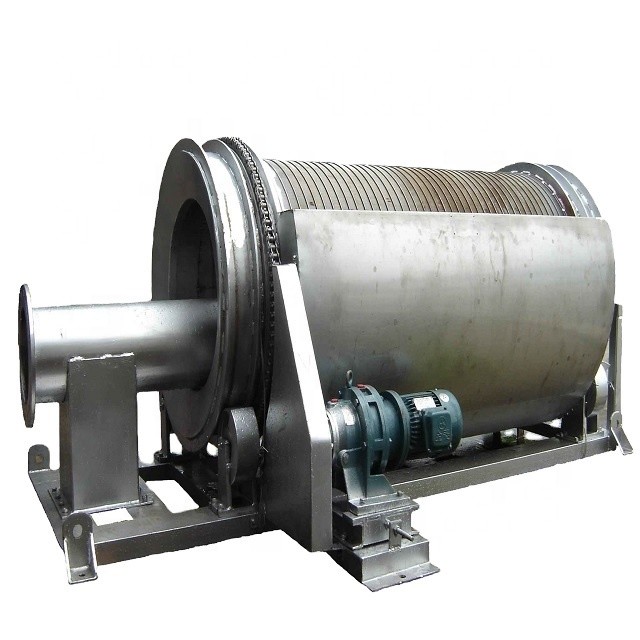

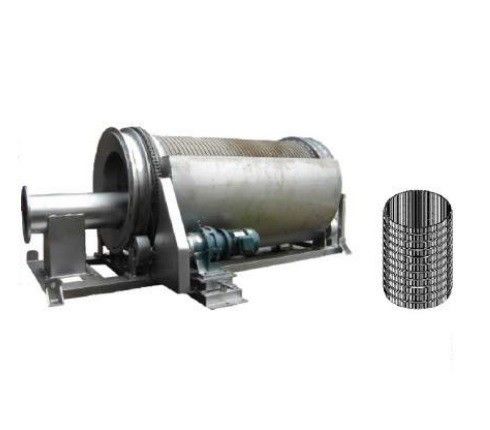

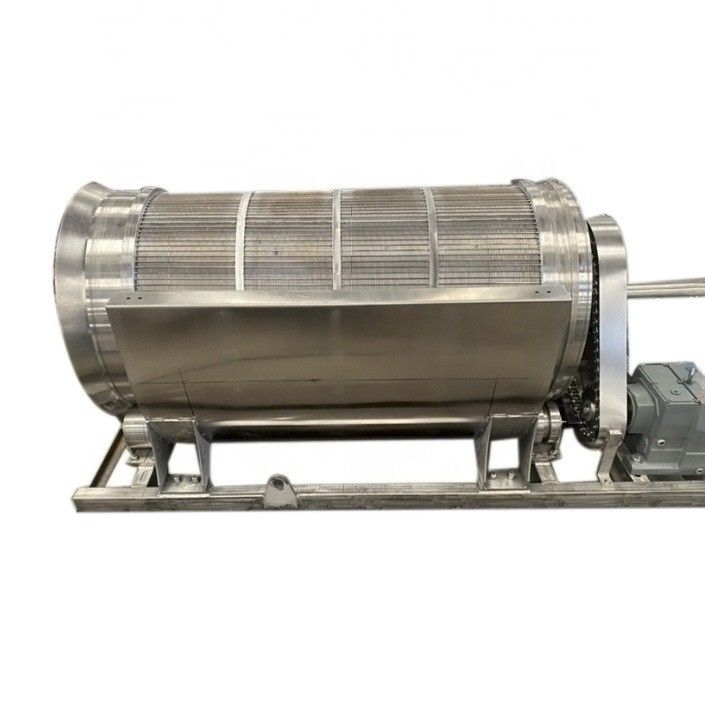

The outward water drum filter, also known as rotary micro-filtration machine, is suitable for solid-liquid separation in industrial wastewater, and can remove suspended particles larger than 0.2mm.
The wastewater is gently and evenly distributed into the rotating screen cylinder from the buffer water inlet, and by the rotation of screen and inner wall slag guide screw, the slags are discharged through the other end, and the filtered water is discharged from the gap of the drum screen.
1. Uniform water distribution and big capacity
2. Simple structure, stable running, easy maintenance, long service life
3. Use the chain transmission, with high transmission efficiency
4. With reverse flushing device, reduce clogging
5. Anti-overflow board on both sides to prevent water splash
| Model | Tube diameter(mm) | Slot Size(mm) | Removal rate
| Shape area(mm) | |
| Grain size >0.75mm | Grain size >037mm | ||||
| TPO-600 | 600 | 0.2-2 | 95% | 55% | 2450x1000x960 |
| TPO-800 | 800 | 3000x1200x1200 | |||
| TPO-1000 | 1000 | 3400x1350x1250 | |||
| TPO-1200 | 1200 | 3500x1850x1450 | |||
| TPO-1500 | 1500 | 3650x1800x1880 | |||
*Above parameters only for reference, customized available for detailed requirements
