| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | TOP |
| Minimum Order Quantity: | 1pc |
| Price: | $4,999.00/sets >=1 sets |
| Packaging Details: | Standard Package for Ocean Freight |
| Supply Ability: | 50 Set/Sets per Month |
| Condition: | New | Warranty: | 6 Months |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Wastewater Treatment | Weight (KG): | 100 |
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 6 Months | Core Components: | PLC, Motor, Gear |
| Material: | SS304/316/duplex Stainless Steel2205 | Filter Precision: | 50-2000 Um |
| Application: | Sewage Treatment | Noise: | Very Low |
| Diameter Of Drum: | 600-1500mm | Rotary Speed: | 0.5-3r/m |
| Filter Material: | SS304 /316L | Certificate: | ISO |
| MOQ: | 1 PCS | Product Name: | Filter |
| Port: | Shanghai/Shenzhen/Tianjin |

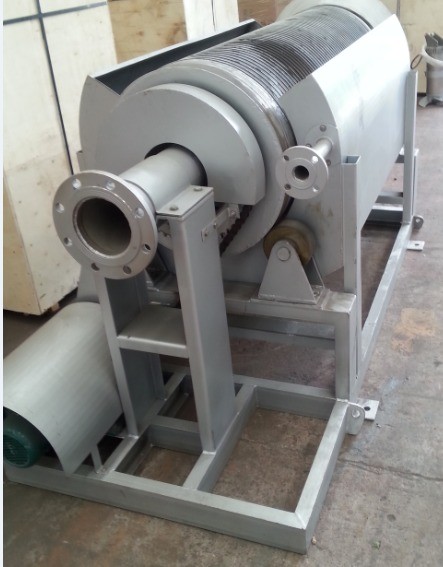

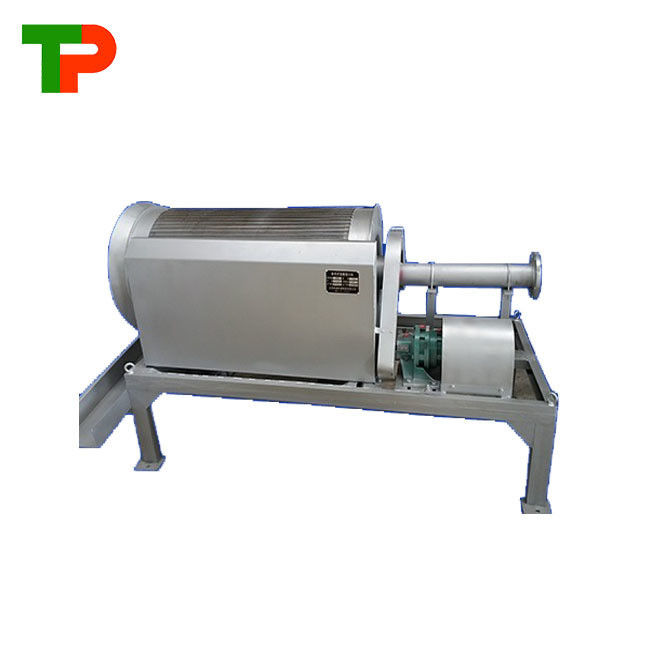

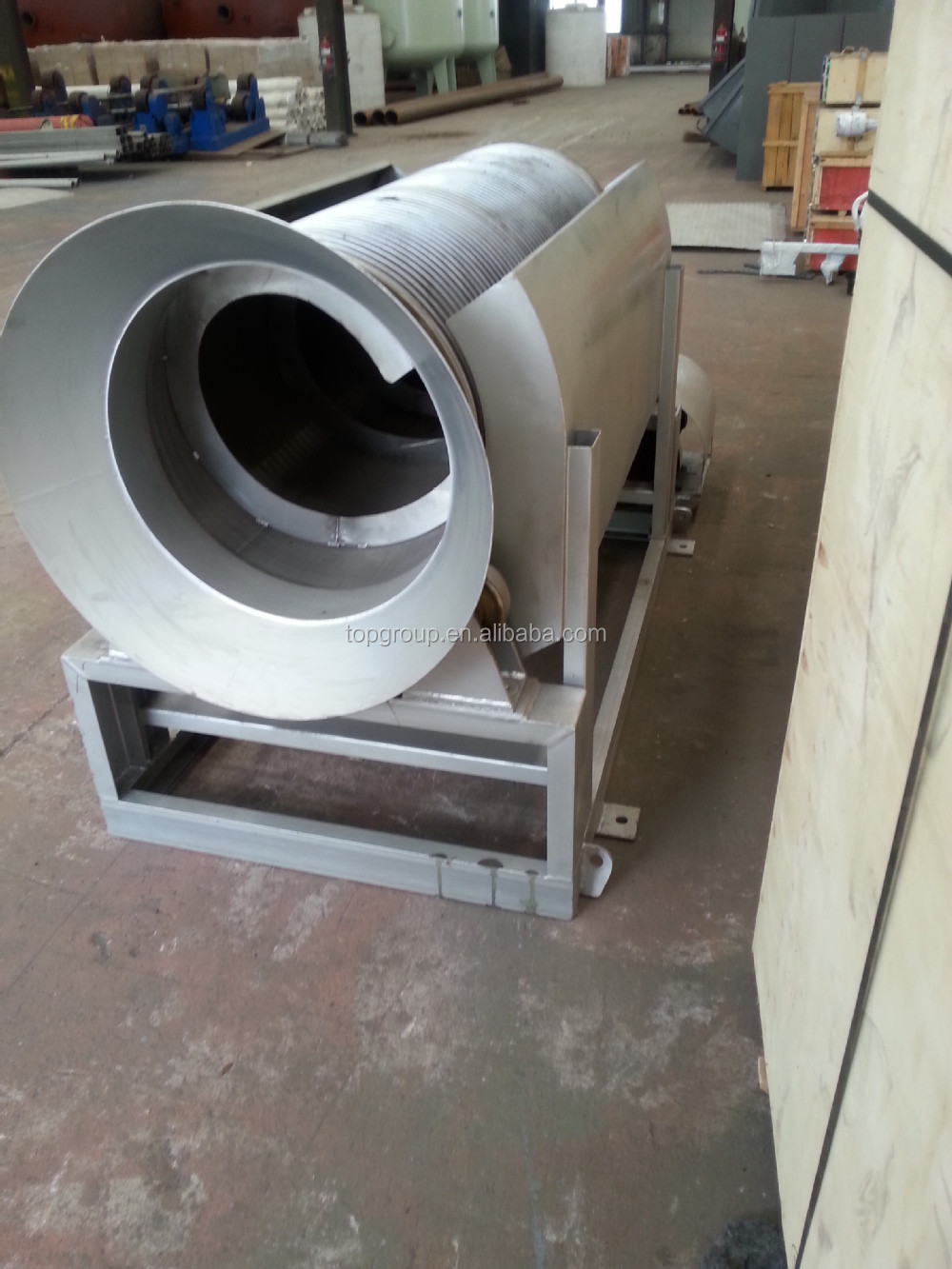

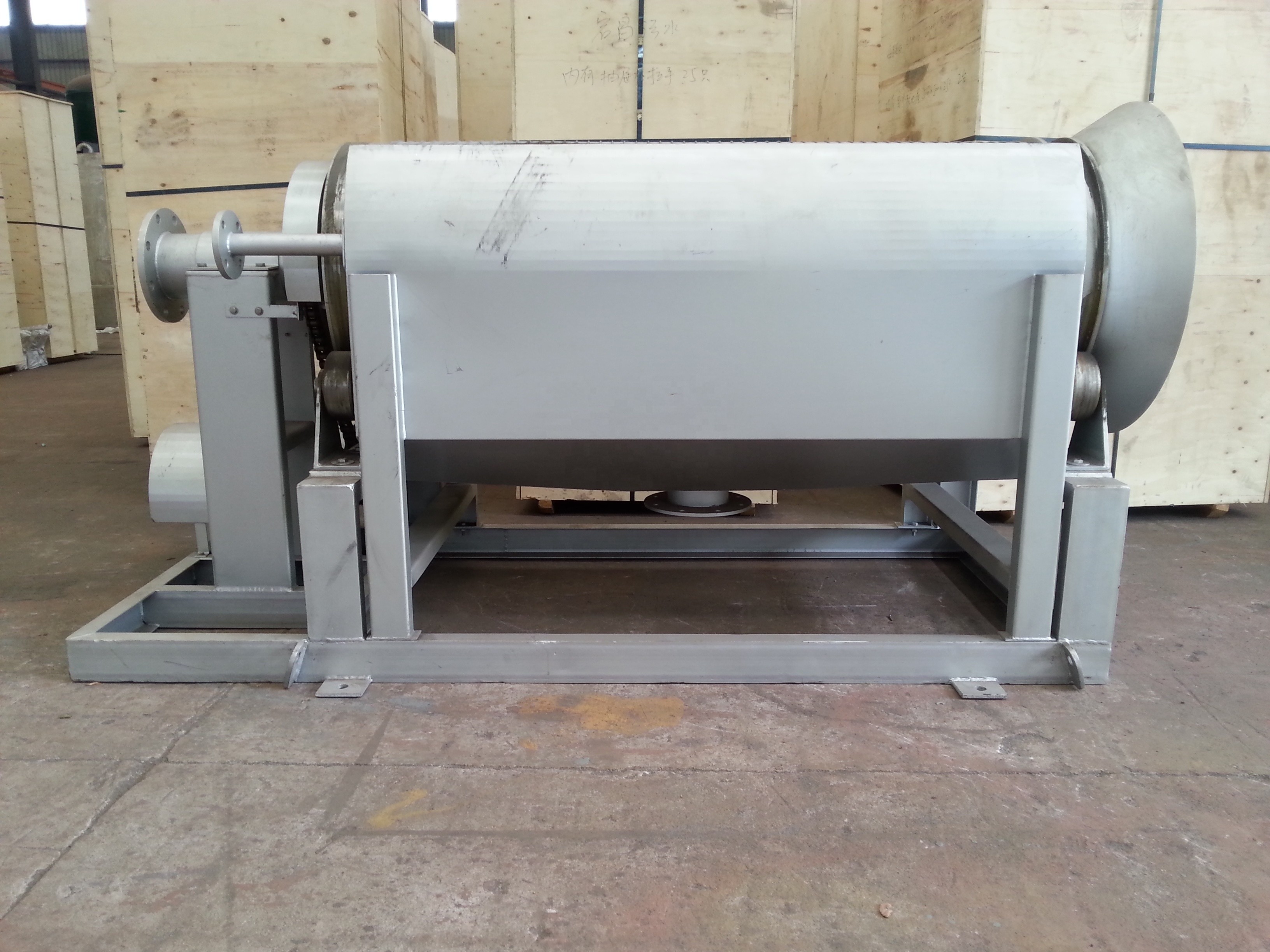

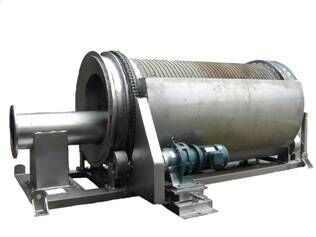

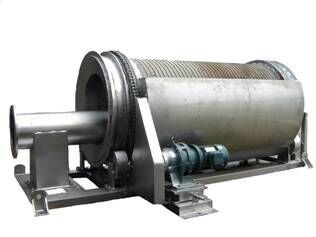

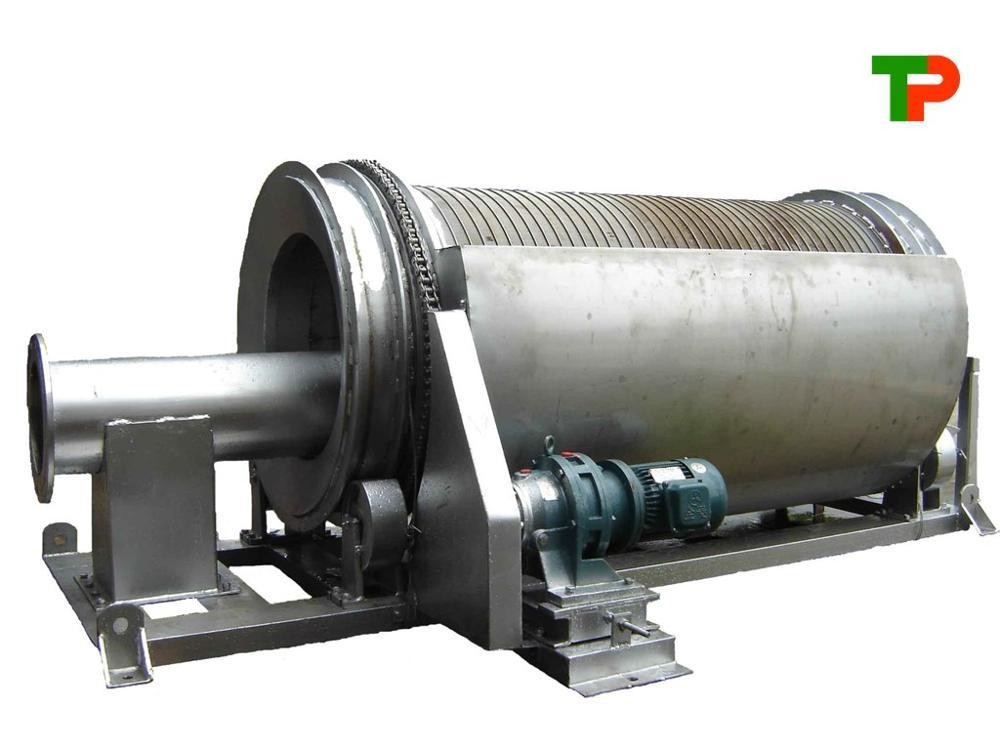

TPO Outward Water Micro Filtration
Product introductions:
TPN Outward Water Micro Filtration is also called rotating decay filter, suitable for the solid-liquid separation of industrial waste water, can remove the dirt from the suspended particles is greater than 0.2 mm, Sewage flat cloth evenly into the inside mesh buffer water inlet into the rotating drum, through net tube and the conducting slag spiral rotate, intercept sewage through the other side discharge, the filtered water from screening drum gap discharge.
Features:
1. Water distribution uniform increase capacity
2. Simple structure, stable running, easy maintenance, long service life
3. Use the chain transmission, high transmission efficiency
4. With reverse flushing device against the filter clogging
5. On both sides of the belt spill-proof plate to prevent the water splash
Technical parameters:
| Model | diameter(mm) | Slot Size(mm) | Removal rate
| Shape area(mm) | |
| Grain size >0.75mm | Grain size >037mm | ||||
| TPLN-600 | 600 | 0.02-2 | 95% | 55% | 2450x1000x960 |
| TPLN-800 | 800 | 3000x1200x1200 | |||
| TPLN-1000 | 1000 | 3400x1350x1250 | |||
| TPLN-1200 | 1200 | 3500x1850x1450 | |||
| TPLN-1500 | 1500 | 3650x1800x1880 | |||
*Above parameters only for reference, customized available for detailed requirements
Slot Section
The Continuous slot screens are made of V-shape wire or wedge shape wire around an internal array of longitudinal support rods. Each jointpoint of these wire is fusion welded, the V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening. Therefore the screen allows water or oil to enter the well freely in ample quantities while keeps the majority of sand and gravel out of the well at the same time.
Structure Options
