| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | TOP |
| Minimum Order Quantity: | 1pc |
| Price: | $1,999.00/sets >=1 sets |
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops |
|---|---|---|---|
| Showroom Location: | Viet Nam, Indonesia, Russia, Thailand, Argentina, Bangladesh | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Gearbox, Motor |
| Material: | Film Packing On Pallet, SS304/316 | Weight: | Depends On Capacity |
| Size: | Depends On Capacity | Warranty: | 1 Year |
| Productivity: | 50~500m3/h | Weight (KG): | 10000 Kg |
| Product Name: | Bar Screen | Application: | Solid Separation |
| Keywords: | Screen | Construction: | Channel/drain |
| MOQ: | 1 Unit | Operation: | Automatic, 24hrs |
| Micron Rate: | 500mm Above | Control: | Electric Auto Control (PLC Siemens) |
| Package: | Wrapped+Pallet |

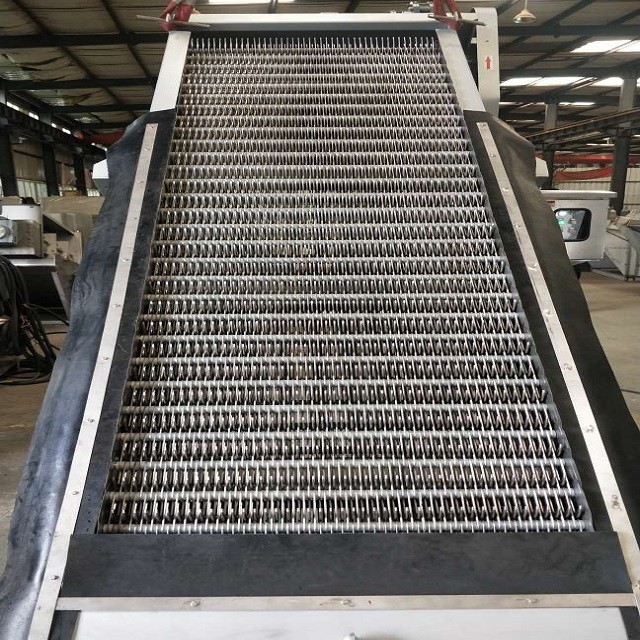

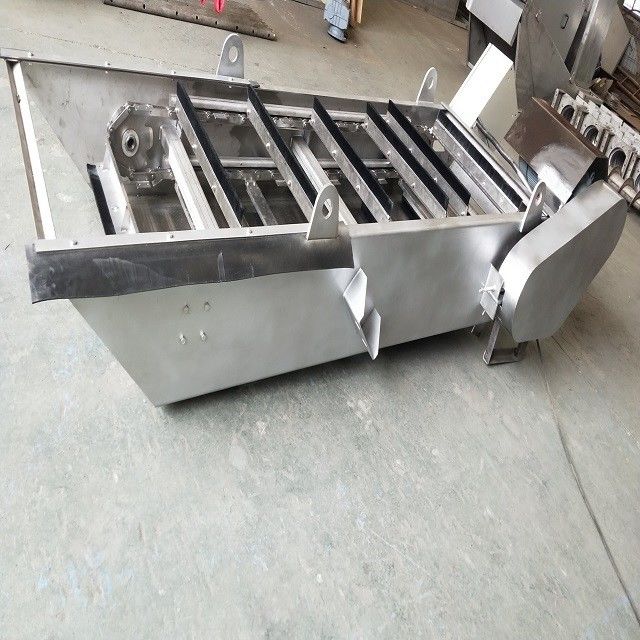

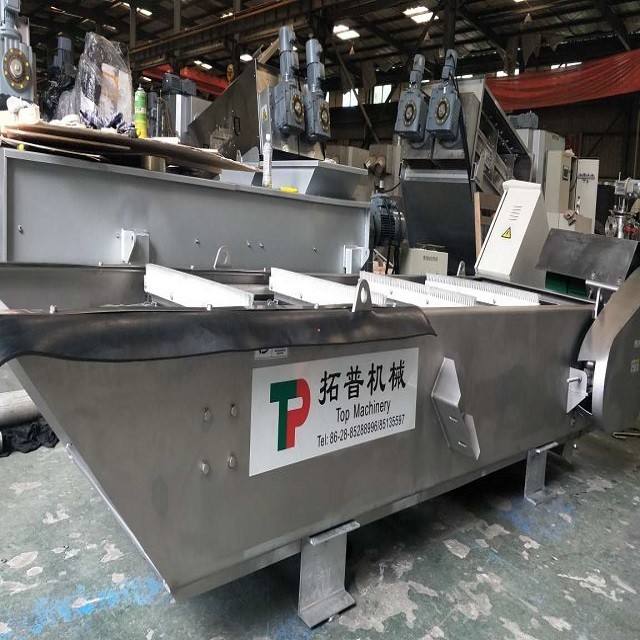

TPPGS series Bar Screen with Mechanical Cleaning (grid decontamination machine) is a device that can automatically and automatically remove various shapes in fluids for solid-liquid separation. It can be widely used as a special equipment in cities. Sewage treatment, tap water industry, power plant inlet, can also be used as special equipment in the production process of textile, food processing, paper making, leather and other industries. It is the most advanced solid-liquid separation equipment in China, bar Screen with Mechanical Cleaning also call grille decontamination machine.
When the crowbar chain runs to the upper part of the equipment, due to the guiding of the sheave and the curved rail, a relative self-clearing motion is generated between each set of molars, and most of the solid matter falls by gravity. The other part relies on the reverse movement of the cleaner to clean the debris sticking to the molars.
According to the direction of the water flow, the dent chain is similar to the screen, and the molar gap assembled on the sprocket chain can be selected according to the conditions of use. When the molars separate the solid suspension in the fluid, the flow of water can be ensured. The entire work process is continuous or intermittent.
The advantages of this equipment are high degree of automation, high separation efficiency, low power consumption, no noise, good corrosion resistance;
Can work continuously and stably under unattended operation. Overload safety protection device is set. When the equipment fails, an audible and visual alarm will be generated and the machine automatically stop, which can avoid overloading the equipment.
Can adjust the machine running interval according to user's needs to achieve periodic operation; it can be automatically controlled according to the liquid level difference before and after the screen; and there is manual control function to facilitate maintenance. Users can choose the control type according to different work needs.
The daily maintenance workload is small, and it has a strong self-cleaning ability and will not cause blockage.
| Models | TPPGS800 | TPPGS1000 | TPPGS1200 | TPPGS1400 | TPPGS1500 | TPPGS1600 |
| Machine width(mm) | 800 | 1000 | 1200 | 1400 | 1500 | 1600 |
| Screen width(mm) | 600 | 800 | 1000 | 1200 | 1300 | 1400 |
| Motor Power(kw) | 0.55 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 |
| Installation angel(a) | 65° 75° 80° | |||||
| Rake teeth gap(mm) | 3~20 | |||||
| Bars step(mm) | 100 | |||||
| Discharge height(mm) | 800 | |||||
| Channel width(mm) | 850 | 1050 | 1250 | 1450 | 1550 | 1650 |
| Bar screen running speed(m/min) | 2.2 | |||||
*Above parameters only for reference, customized available for detailed requirements
