| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | TOP |
| Minimum Order Quantity: | 1pc |
| Price: | $2,500.00/sets >=1 sets |
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops |
|---|---|---|---|
| Showroom Location: | Viet Nam, Indonesia, Russia, Thailand, Argentina, Bangladesh | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Gearbox, Bearing, Motor |
| Material: | Film Packing On Pallet, SS304/316 | Weight: | Depends On Capacity |
| Size: | Depends On Capacity | Warranty: | 1 Year |
| Productivity: | 50~1000m3/h | Weight (KG): | 10000 Kg |
| Product Name: | Auto Screen | Application: | Solid Separation |
| Other Name: | Inclined Screen | Construction: | Channel/drain |
| MOQ: | 1 Unit | Operation: | Automatic, 24hrs |
| Micron Rate: | 50mm Above | Control: | Electric Auto Control (PLC Siemens) |
| Cleaning: | By Brush |
TPBGS series Rotating Arm Mechanical Bar Screen is a kind of device which can continuously and automatically remove dirt of various shapes in the fluid, aiming at solid-liquid separation. It can be widely used as a special equipment in textile, leather, pharmaceutical, food, water plant, power plant and other industries. The structure of the equipment is reasonable, and it can effectively remove fine suspended organisms and impurities in the water, such as grass, garbage, fibrous materials and other debris, to prevent them from entering the water pump and subsequent equipment, and ensure the normal operation of the water pump and other equipment.

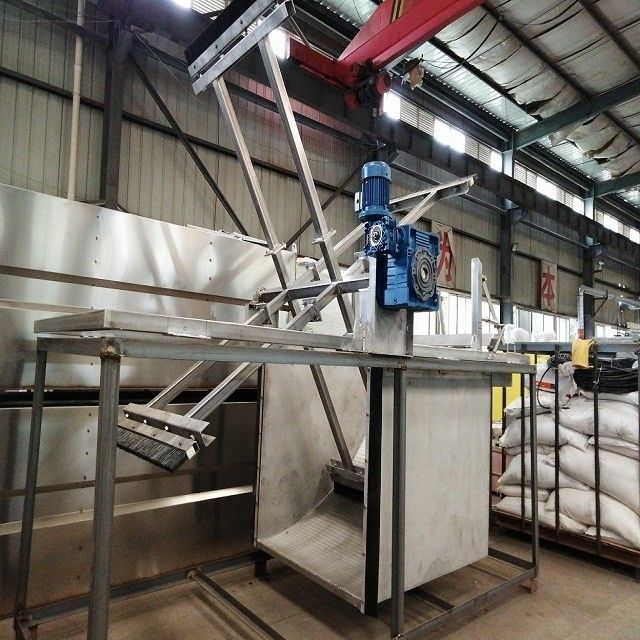

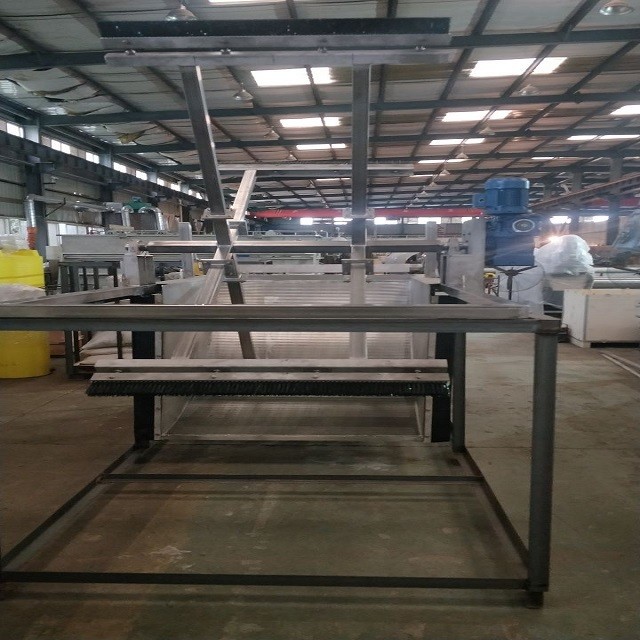

The equipment is mainly composed of frame, main shaft, rotating mechanism, arc wedge filter screen, slag cleaning brush, etc. During operation, the slag cleaning brush slowly rotates around the horizontal axis installed at the curvature center of the arc-shaped wedge-shaped filter screen to remove the intercepted dirt on the filter screen.
1. This equipment has the characteristics of high efficiency filtration and decontamination, smooth water flow, stable operation, low noise, low energy consumption, land occupation, long service life, automatic operation, etc.
2. The method of rotating arm can more effectively remove the suspended matters and impurities without slag running out.
3. The structure is simple, compact and easy to maintain.
4. Top quality V-slot wedge-shaped filter screen, with precise gap, extremely smooth surface, easy to clean, high strength, long life and convenient replacement.
5. V-slot wedge screen has high opening rate and large effective filtering area.
6. The plate brush is easy to clean.
| Model (TPBGS) | 800 | 1000 | 1300 | 1500 | 1800 | 2000 | 2500 |
| Screen radius (mm) | 800 | 1000 | 1300 | 1500 | 1800 | 2000 | 2500 |
| Channel Width(mm) | Customized | ||||||
| Channel Depth(mm) | Customized | ||||||
| Slot size(mm) | 0.25-3 | ||||||
| Velocity of flow(m/s) | 0.6-1 | ||||||
| Spindle speed(r/min) | 0.8-1.0 | ||||||
| Motor power | 0.75-1.5KW | ||||||
Parameters and images are for reference only and the company reserves the right to continuous improvement.
For orders, please specify: slot size, flow rate, material, control type (time control / level control), installation angle.
