| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | TOP |
| Certification: | ISO |
| Minimum Order Quantity: | 1pc |
| Price: | $15,000.00 - $50,000.00/sets |
| Packaging Details: | Standard package <br>Hot selling Screw Press for SBR |
| Supply Ability: | 30 Set/Sets per Month Hot selling Screw Press for SBR |
| Condition: | New | Applicable Industries: | Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Printing Shops, Food & Beverage Shops |
|---|---|---|---|
| Showroom Location: | France, Philippines, Indonesia, Pakistan, India, Russia, Thailand, Argentina, Chile, Colombia, Bangladesh, Malaysia, Australia | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | Gearbox, Pump, Motor, PLC |
| Material: | Pallet, Stainless Steel | Weight: | 500kg |
| Size: | 1000mmx1100mmx1200mm | Power: | 1.47kw, 380V/customized |
| Warranty: | 1 Year | Productivity: | 500L/Hour |
| Weight (KG): | 500 Kg | Application: | Leather/Municipal Water And Industrial Water |
| Type: | Water Filter Parts | Color: | Grey |
| Function: | Sludge Dewatering | Control: | PLC/Relay Control |
| Outlet Moisture: | 75%-80% | Capacity: | 0.5-32M3/H |
| Port: | Shanghai/Shenzhen/Tianjin |

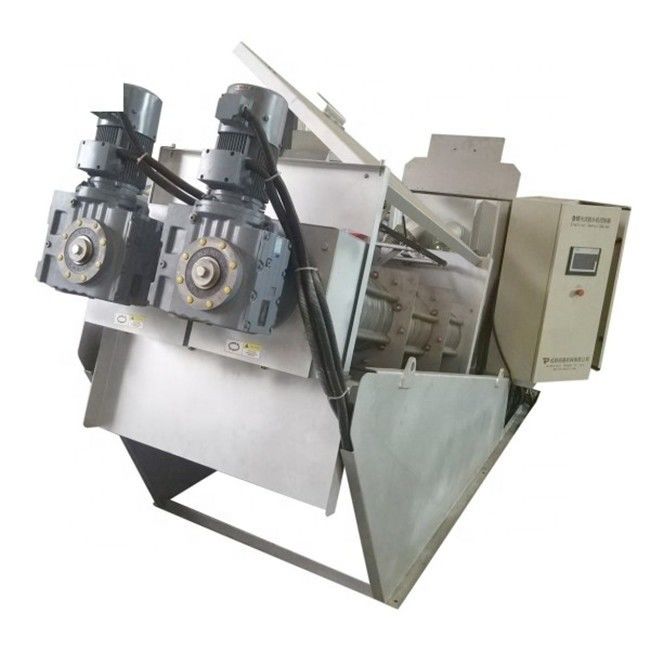

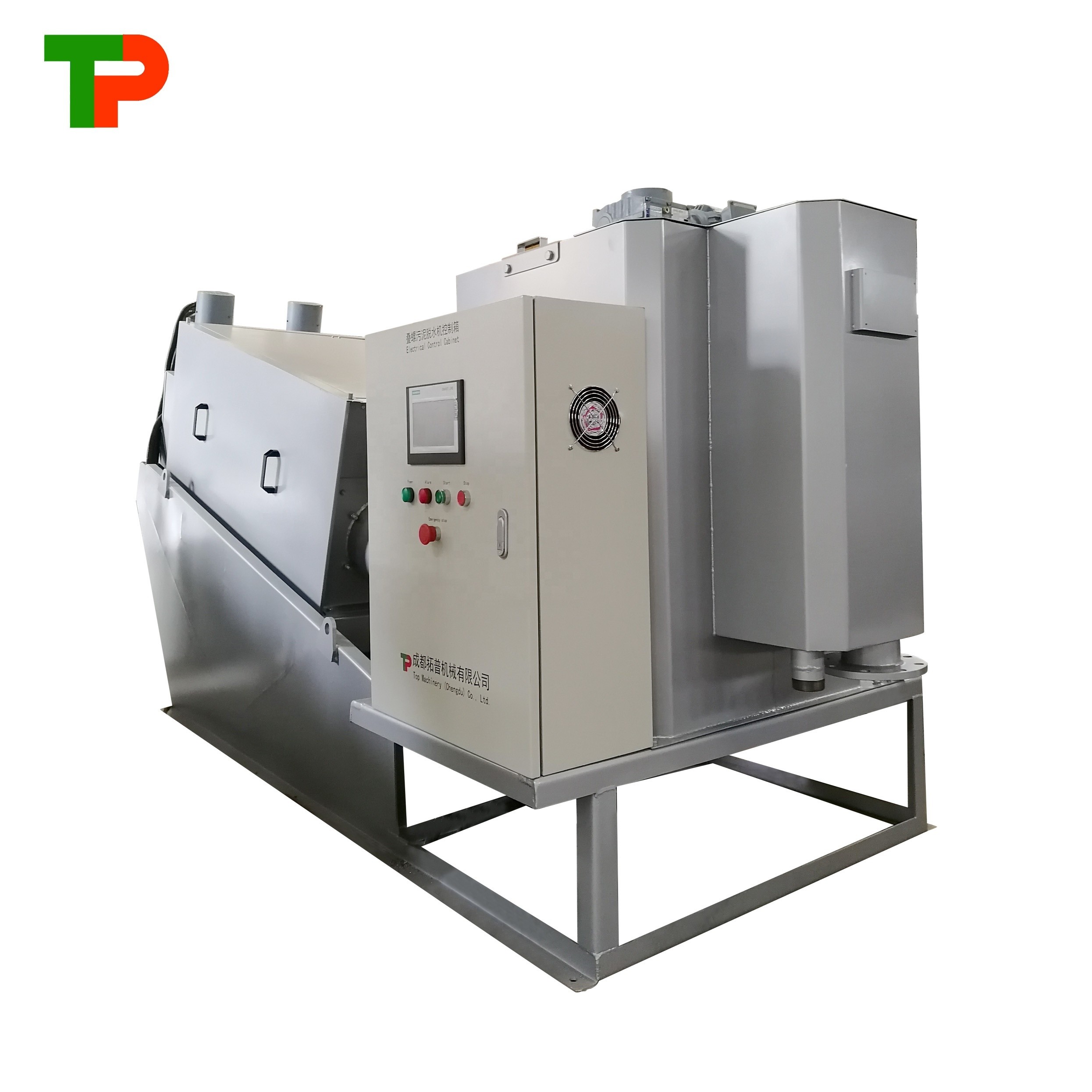

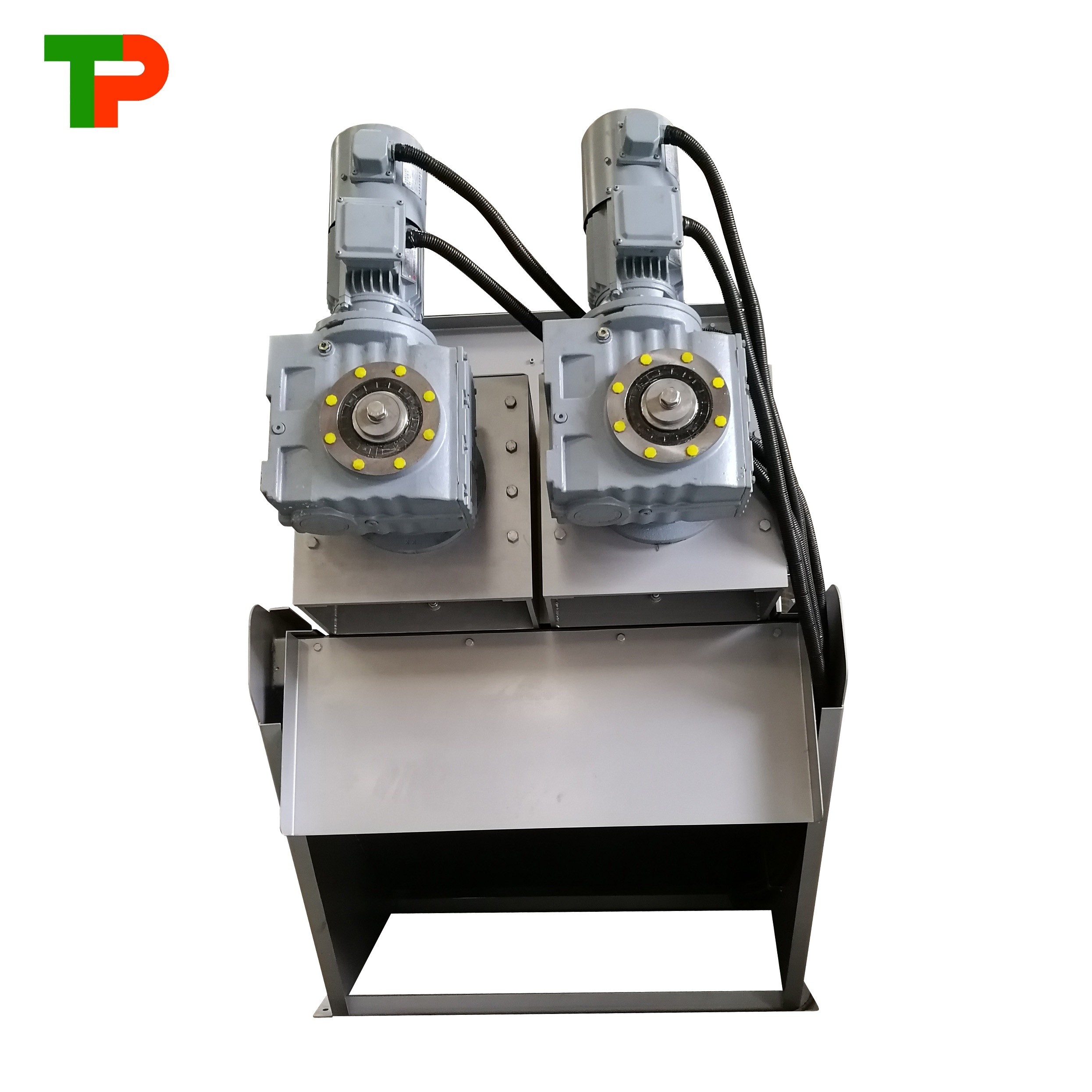

Hot selling Screw Press for SBR
TPDL volute screw sludge dewatering machine is a new technology of Sludge Dewatering Machine(Hereinafter referred as TPDL) which belongs to the screw press, can replace the traditional filter press like belt press and frame press. It's clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of sewage plant construction.
Screw Press Usage
•Municipal & Domestic
•Tannery•Paper & Pulp•Dyeing & Printing
•Food & Beverage•Dairy•Agricultural•Slaughter & Farming
•Pharmaceutical & Petrochemical
Hot selling Screw Press for SBR
Screw Press Working principle
The wastewater is pushed into the dewatering machine.The sludge will move to the sludge cake outlet under the pressure of the helical aixs blades. Becuse the gap among the helical blades become narrower,so the sludge bear heavier pressure and began to dewatering under the pressure. The water comes out from the space between fixed and moving plates.
Hot selling Screw Press for SBR
Screw Press Advantages
1. Low operation cost: below 40% of belt press and 20% of centrifuge.
2. Power-saving: less than 5% of centrifuge
3. Water-saving: less than 0.1% of belt filter press.
4. Saving drugs: saving around 60%.
5. Compact: saving more than 60% of the investment for dehydration room.
6. Non-clogging: processing the fats & oils and fiber sludge perfectly.
Hot selling Screw Press for SBR
Screw press spare part
Hot selling Screw Press for SBR
Screw Press Process flow chart
Hot selling Screw Press for SBR
Hot selling Screw Press for SBR

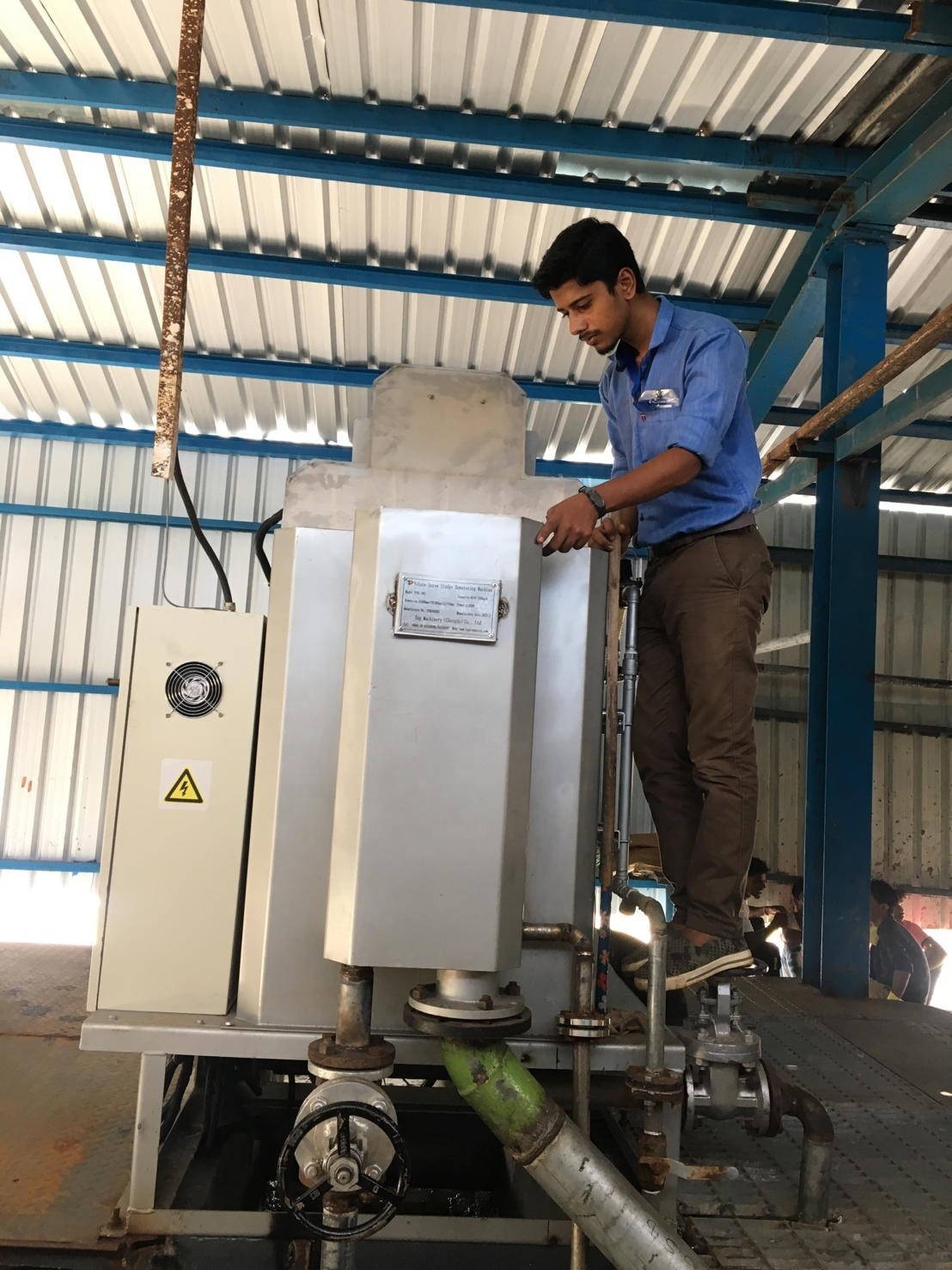

With our consistent effort, our machinery is supplied to more than 30 countries
Hot selling Screw Press for SBR

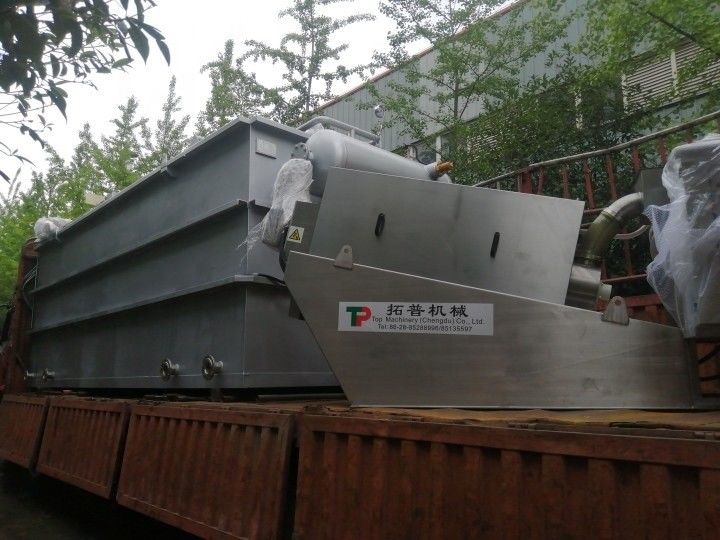

Wooden pallet or standard export wooden box as per customers' requirement.
Hot selling Screw Press for SBR
Hot selling Screw Press for SBR

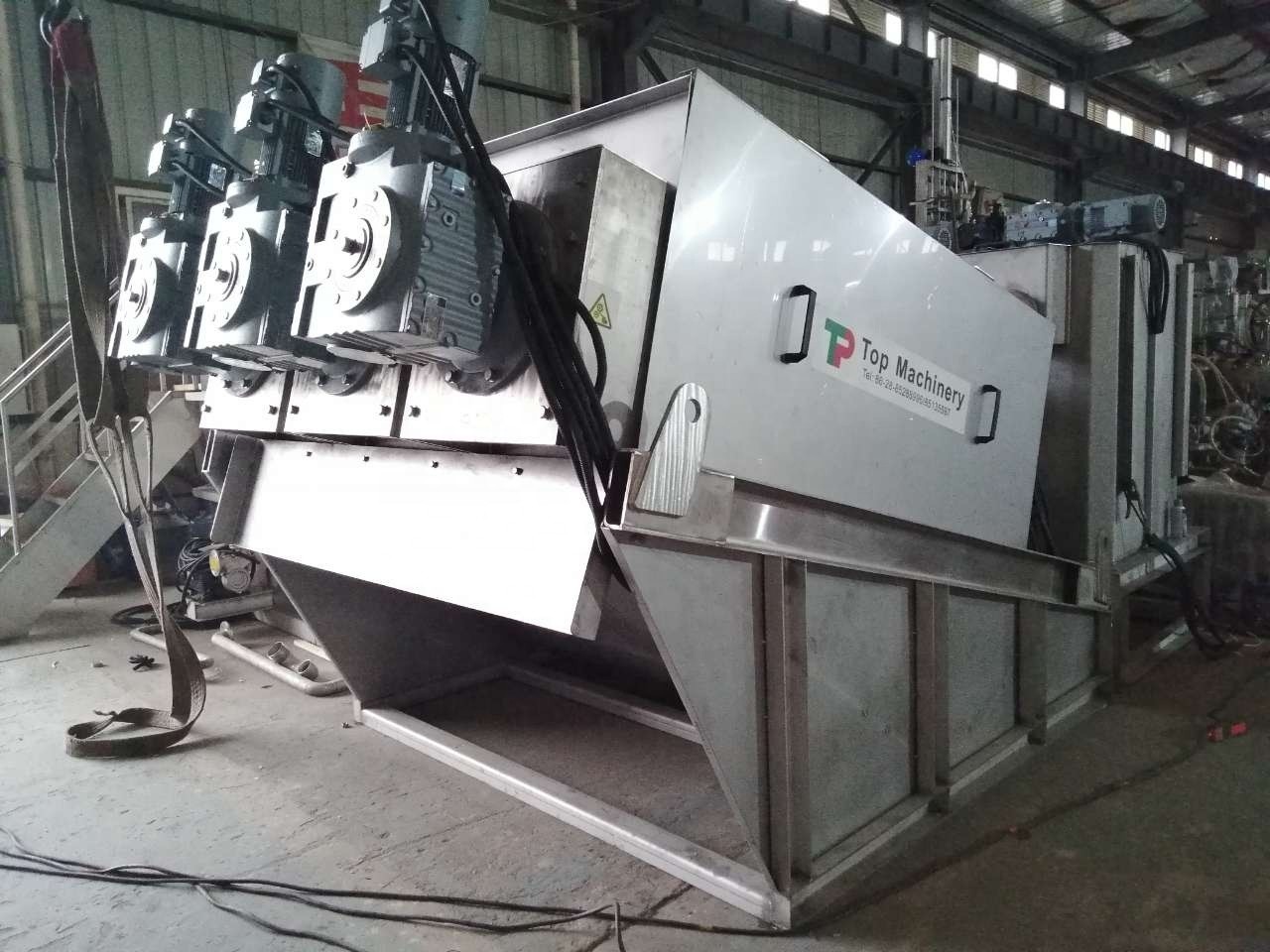

Top machinery, founded in 2002, specialized manufacture wastewater treatment equipment and sludge dewatering machine, like screw type sludge dewatering machine, decanter centrifuge, brushing/scraping self-cleaning filter, automatic back-flushing filter, Bernoulli filter, electrocoagulation, inward/outward water micro filter, bar screen, etc. With our consistent effort, high quality, competitive price and good after-service, our machines are supplied to more than 30 countries with very good feedback.
