| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | TOP |
| Certification: | ISO9001:2008 |
| Minimum Order Quantity: | 1pc |
| Price: | $8,999.00/sets 1-4 sets |
| Packaging Details: | Standard package<br>Cheap Factory Price DAF Dissolved Air Flotation System |
| Supply Ability: | 30 Set/Sets per Month Cheap Factory Price DAF Dissolved Air Flotation System |
| Condition: | New | Applicable Industries: | Hotels, Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company |
|---|---|---|---|
| Showroom Location: | Indonesia, Pakistan, India, Chile, Bangladesh | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | Gearbox, Motor, PLC |
| Material: | Container, Stainless Steel | Weight: | 1000kg |
| Size: | 1000mm*1500mm*1200mm | Power: | 2..02 |
| Warranty: | 1 Year, 1 Year | Productivity: | 95% |
| Weight (KG): | 2500 Kg | Supporting Equipment: | Auto Dosing Equipment, Sludge Dewatering Machine, Sludge Pump |
| Type: | Water Filter Parts | Color: | Grey |
| Function: | Solid-liquid Separation | Capacity: | 1-200m3/h/set |
| Application: | Textile And Dyeing, Paper Mill, Municipal, Dairy Plant, Food, Etc. | Voltage: | 380V /Customized |
| Port: | Shanghai/Shenzhen |

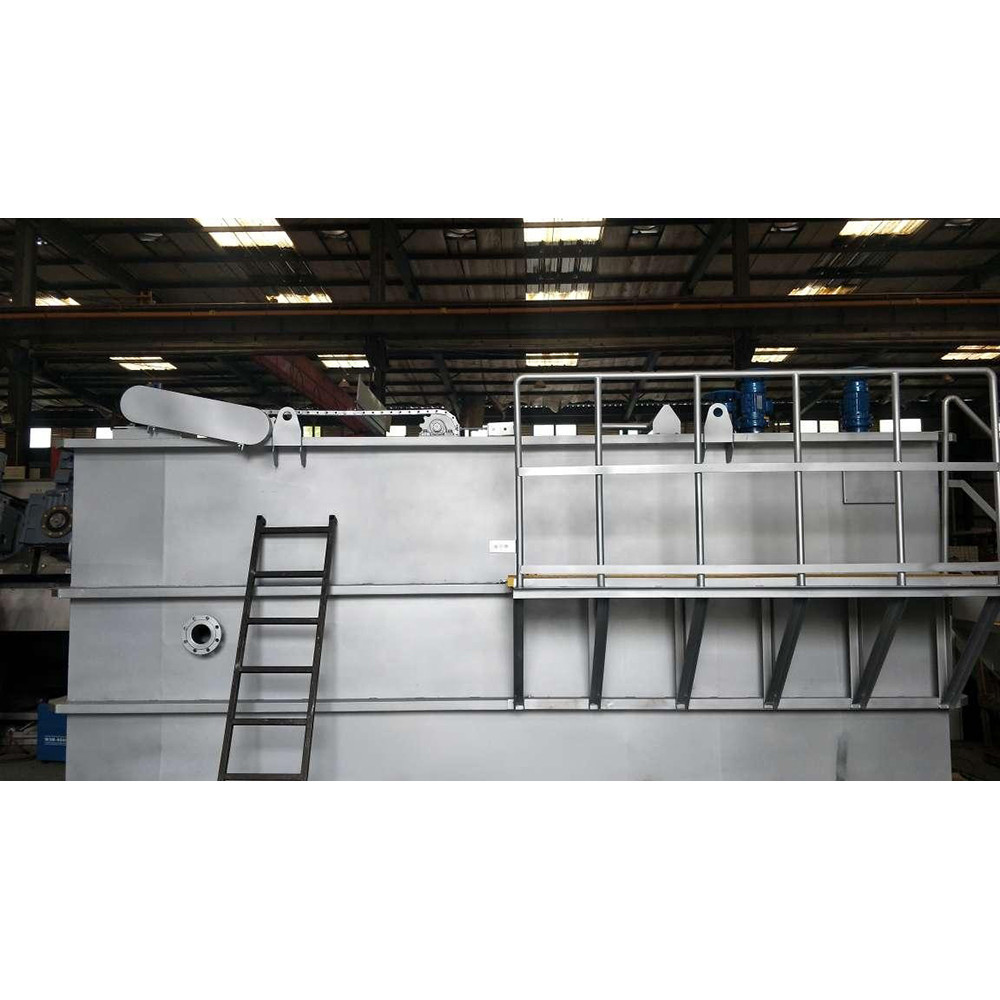

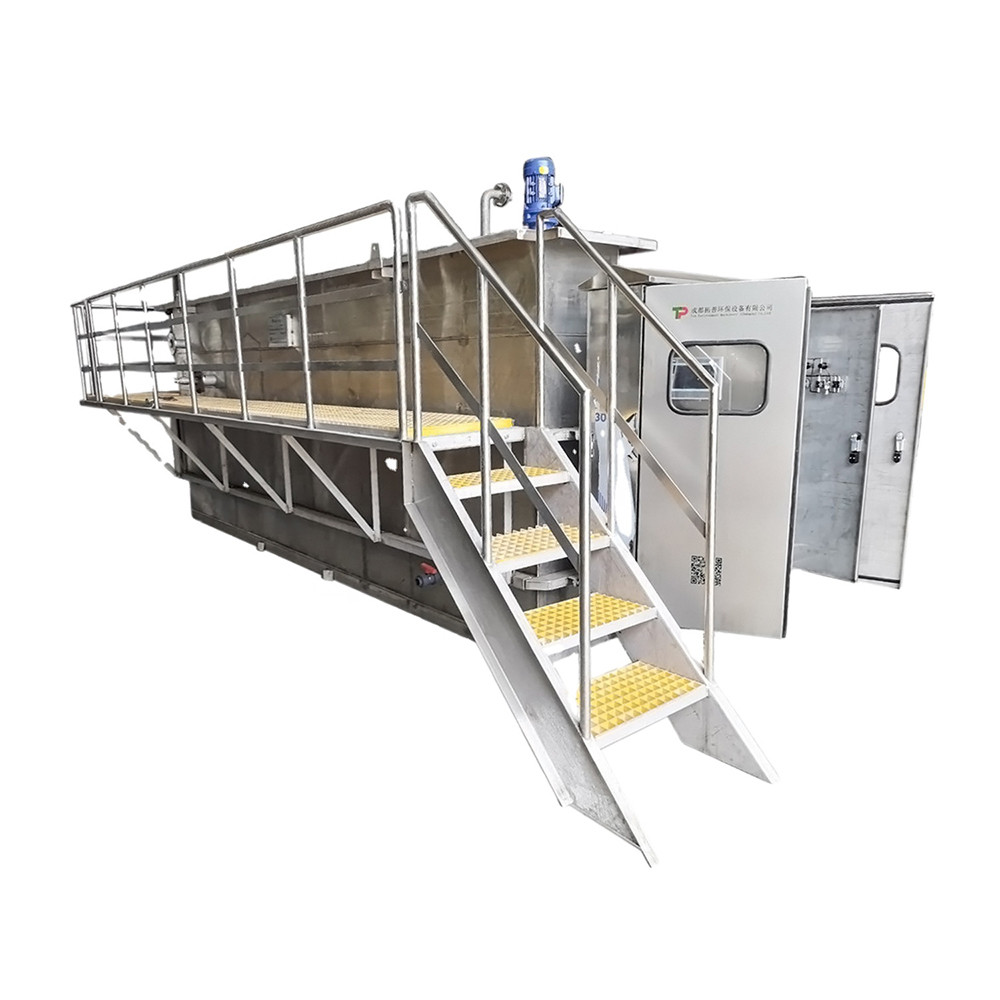

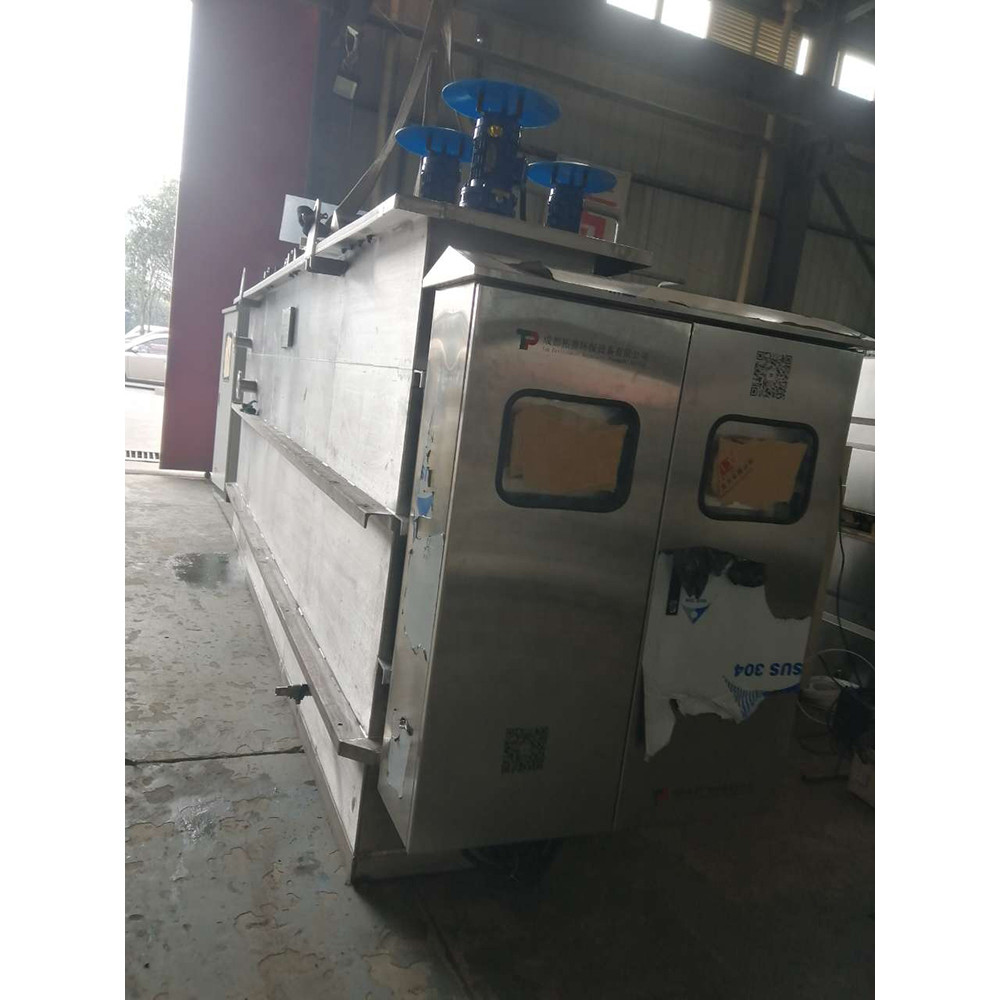

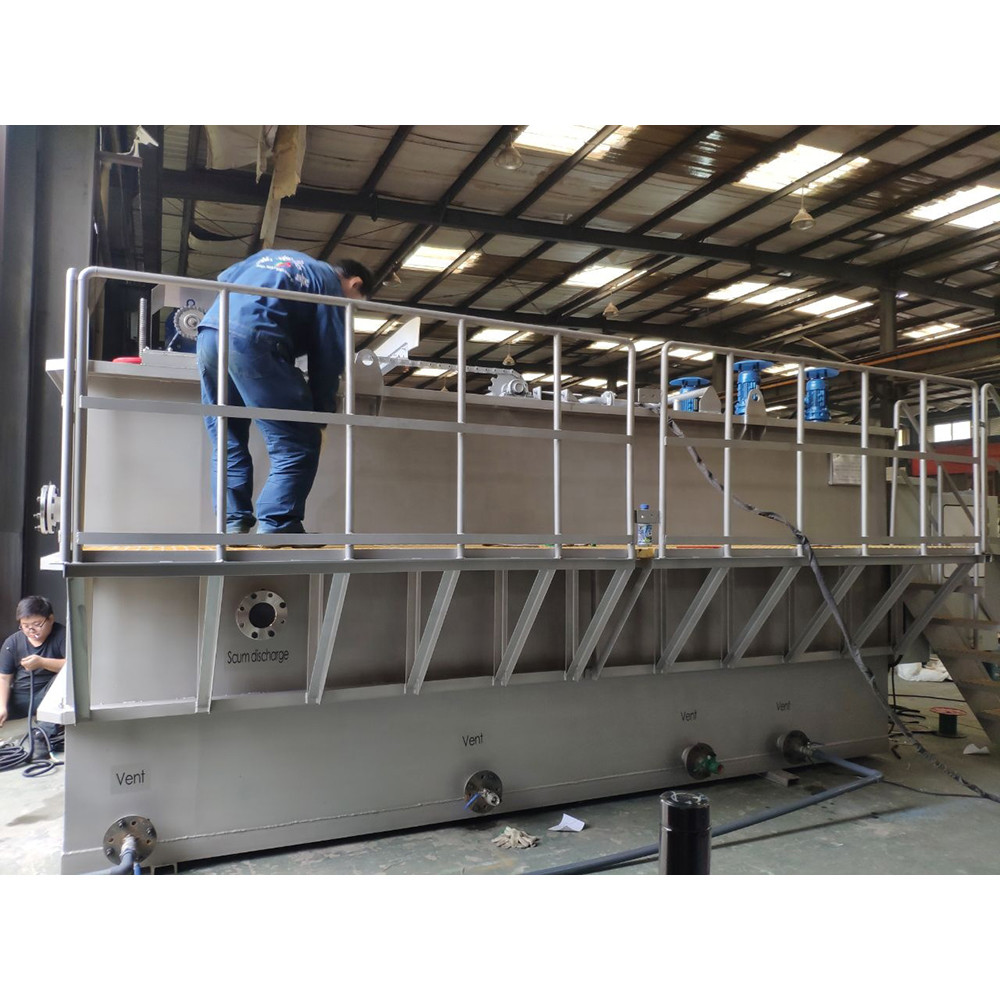

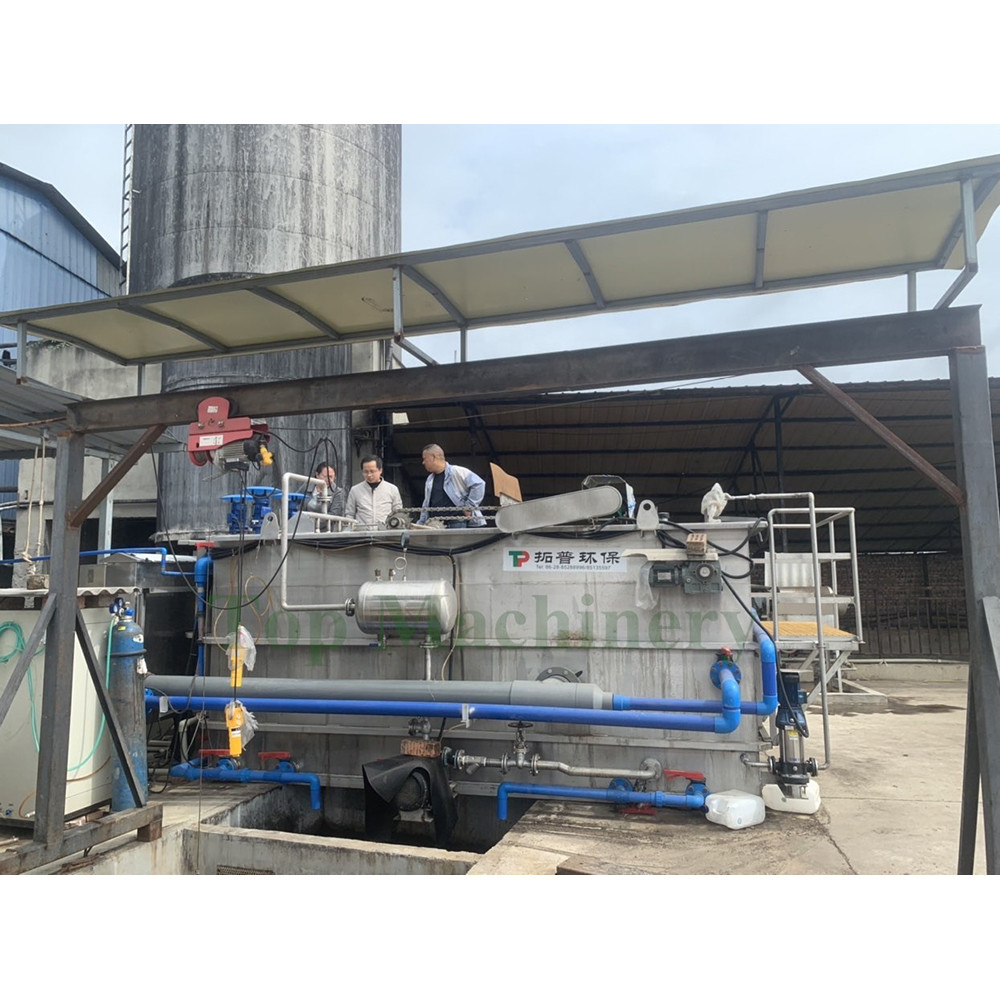

TPNF Micro Nano Dissolved Air Flotation Machine consists of air floatation tank, micro nano system, scraping device (combined, driving and chain plate according to user needs) and electric control cabinet. In the water supply and drainage treatment process, solid and liquid separation technology and machine are one of the key projects. Air flotation is one of the most effective methods for the removal of tiny suspended particles with a specific gravity close to that of water.
Dissolved Air Flotation Machine Working principle
Dissolved Air Flotation Machine Advantages
SS remove rate can reach more than 95%
The clean water treated by TPNF is then filtered through a special structure filter element to achieve ultra-clear water
Compact design, easy maintenance, and short maintenance time.
The operating cost is low and small chemical use amount
Dissolved Air Flotation Machine Process control
|
Model |
Capacity (m3/h) |
Volume of dissolved air water (m3/h) |
Main Power (kw) |
Aerated motor (kw) |
Scraper (kw) |
Total Power (kw) |
| TPNF-1 | 0.5-1 | 0.3-0.5 | 0.55 | 0.55 | 0.18 | 1.28 |
| TPNF-2 | 1-2 | 0.5-0.8 | 0.55 | 0.55 | 0.18 | 1.28 |
| TPNF-3 | 2-3 | 1-1.5 | 1.1 | 0.55 | 0.37 | 2.02 |
| TPNF-5 | 3-5 | 1.5-2 | 1.1 | 0.55 | 0.37 | 2.02 |
| TPNF-10 | 5-10 | 3-4 | 1.5/5.5 | 0.75 | 0.37 | 2.62/6.62 |
| TPNF-15 | 10-15 | 4-5 | 2.2/5.5 | 0.75 | 0.37 | 3.32/6.62 |
| TPNF-20 | 15-20 | 5-7 | 2.2/5.5 | 0.75 | 0.37 | 3.32/6.62 |
| TPNF-30 | 20-30 | 8-12 | 5.5 | 0.75 | 0.37 | 6.62 |
| TPNF-40 | 30-40 | 10-15 | 5.5 | 0.75 | 0.37 | 6.62 |
| TPNF-50 | 40-50 | 15-18 | 7.5 | 1.5 | 0.37 | 9.37 |
| TPNF-60 | 50-60 | 18-20 | 7.5 | 1.5 | 0.37 | 9.37 |
| TPNF-70 | 60-70 | 20-25 | 11 | 2.2 | 0.55 | 13.75 |
| TPNF-80 | 70-80 | 25-30 | 11 | 2.2 | 0.55 | 13.75 |
| TPNF-100 | 80-100 | 35-40 | 15 | 2.2 | 0.55 | 17.75 |
| TPNF-150 | 120-150 | 40-50 | 15 | 2.2 | 0.55 | 17.75 |
| TPNF-200 | 180-200 | 70-80 | 22 | 4 | 1.1 | 27.10 |
With our consistent effort,Our machinery is supplied to more than 30 countries including the Russia,Pakistan,India,Argentina,Indonesia,Romania,Canada,Turkey,Vietnam and other countries. Also participate in the exhibitions of urban sewage treatment, wastewater treatment, textile, leather, chemical and other industries.
Top machinery, founded in 2002, specialized manufacture wastewater treatment equipment and sludge dewatering machine, like screw type sludge dewatering machine, decanter centrifuge, brushing/scraping self-cleaning filter, automatic back-flushing filter, Bernoulli filter, electrocoagulation, inward/outward water micro filter, bar screen, etc. With our consistent effort, high quality, competitive price and good after-service, our machines are supplied to more than 30 countries with very good feedback.
